150W Indoor Rental LED Screen Led Video Panels Energy Efficiency

Name: 150W Indoor Rental LED Screen Led Video Panels Energy Efficiency
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P2.604/P2.84/P2.976/P3.91
Price: 20.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P2.604/P2.84/P2.976/P3.91

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1sqm

Price: Negotiated

Packaging Details: Flight case, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Indoor Rental LED Screen Energy Efficiency, 150W Indoor Rental LED Screen, Led Video Panels Energy Efficiency


LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified	Refresh Rate:	3840Hz-7680Hz
Brightness:	≥700 Cd/m2	Maintenance Methods:	Rear & Front
Module Size:	250*250mm	Cabinet Size:	500*1000mm
Cabinet Material:	Die Casting Aluminum	Cabinet Weight:	6.9 Kg
Protection Level:	IP30	Max. Power Consumption:	≤430W/㎡
Ave. Power Consumption:	≤150W/㎡	Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified
Refresh Rate:	3840Hz-7680Hz
Brightness:	≥700 Cd/m2
Maintenance Methods:	Rear & Front
Module Size:	250*250mm
Cabinet Size:	500*1000mm
Cabinet Material:	Die Casting Aluminum
Cabinet Weight:	6.9 Kg
Protection Level:	IP30
Max. Power Consumption:	≤430W/㎡
Ave. Power Consumption:	≤150W/㎡
Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

150W Indoor Rental LED Screen Led Video Panels Energy Efficiency

Indoor LED Screen HUB Connecting 500x1000mm Die Casting Aluminum Cabinet

Product features:

1. Self-developed private model products, modular design, support front/rear maintenance.

2. The flexible arc lock design can adapt to both flat and curved screens, catering to the diverse screen splicing needs of different customers.

3. With multiple protections and reduced maintenance, the light and thin die-cast aluminum cabinet offers strong toughness, high precision, and resistance to deformation.

4. The average power consumption is only up to 150W, which is energy-saving and environmentally friendly.

5. 120-degree ultra-wide viewing angle.

6. Thanks to RGB deep grayscale processing, the colors are vivid and refined, resulting in a clear, natural image.

7. Perfect for rentals, the HUB connection is equipped with screwless fixing, making installation and removal fast and effortless.

Product technical specifications:

Item	Parameter	Specification
Module parameters	Pitch	2.604mm	2.84mm	2.976mm	3.91mm
	LEDs	SMD1515			SMD2020
	Lead wire	Copper
	Module resolution	96*96 dots	88*88 dots	84*84 dots	64*64 dots
	Module size ± tolerances	249.90±0.1(V)* 249.90±0.1(H)*17.9±0.5(D)
	Module weight ± tolerances	≤0.55 KGS
	Pixel density	147456 dots/㎡	123904 dots/㎡	122976 dots/㎡	65536 dots/㎡
Cabinet parameters	Cabinet size ± tolerances	499.9(±0.1)(H)999.9(±0.1)(V) 76(±0.2)(D)
	Cabinet flatness	≤1.0mm
	Cabinet material	Die casting aluminum
	Cabinet weight ± tolerance	≤6.9 KGS
Cabinet parameters of screen	Module quantity for 1 cabinet	2*4=8 PCS
	Cabinet resolution	192*384 dots	176*352 dots	168*336 dots	128*256 dots
	Cabinet + Module size ± tolerance	499.9(±0.1)(H)999.9(±0.1)(V)85(±0.2)(D)
	Cabinet + Module weight ± tolerance	12.5 KGS
	Maintenance methods	Rear/Front
	Flatness	≤1.0mm
	Screen seams	≤1.0mm
Optical parameters	Pixel-by-pixel brightness correction	Support
	Pixel-by-pixel chromaticity correction	Support
	White balance brightness	≥700 cd/m2
	Color temperature	3000K-15000K
	Horizontal viewing angle	≥120°
	Vertical viewing angle	≥110°
	Viewing distance(=PITCH*1)	≥3m
Electrical parameters	Max. power consumption of cabinet	≤200 W
	Ave. power consumption	≤165W/㎡	≤150W/㎡
	Max. power consumption	≤470W/㎡	≤430W/㎡
	Power supply requirements	220-240V AC
Processing performance	Scan	32S	30S	21S	16S
	Frame rate	50-60Hz
	Refresh rate	3840Hz-7680Hz
	Drive mode	Constant current
	Grayscale	14bits - 16bits
Control system	Control method	Ethernet port
	Control the distance	Cat5e Unshielded Twisted Pai
	Signal input	HDMI,DVI
	Brightness adjust	Manual/automatic/remote control
Operational parameters	Continuous working hours	≥ 5000hrs
	Mean time between failures	≥ 5000hrs
	Discrete out-of-control points	0 before shipping
	Continuous runaway points	0
	Blind spot rate	0 before shipping
	Screen temperature rise	≤ 65℃
Usage parameters	Typical life values	50000hrs
	Lamp temperature	≤60°
	Operating temperature	-10°~50°
	Storage temperature	-20°~50°
	Operating humidity	10~65%RH no condensation
	Storage humidity	10~65%RH no condensation
Protection	Protection level	IP30
Certification	CE/FCC/ROHS/ISO	/

Reference pictures:

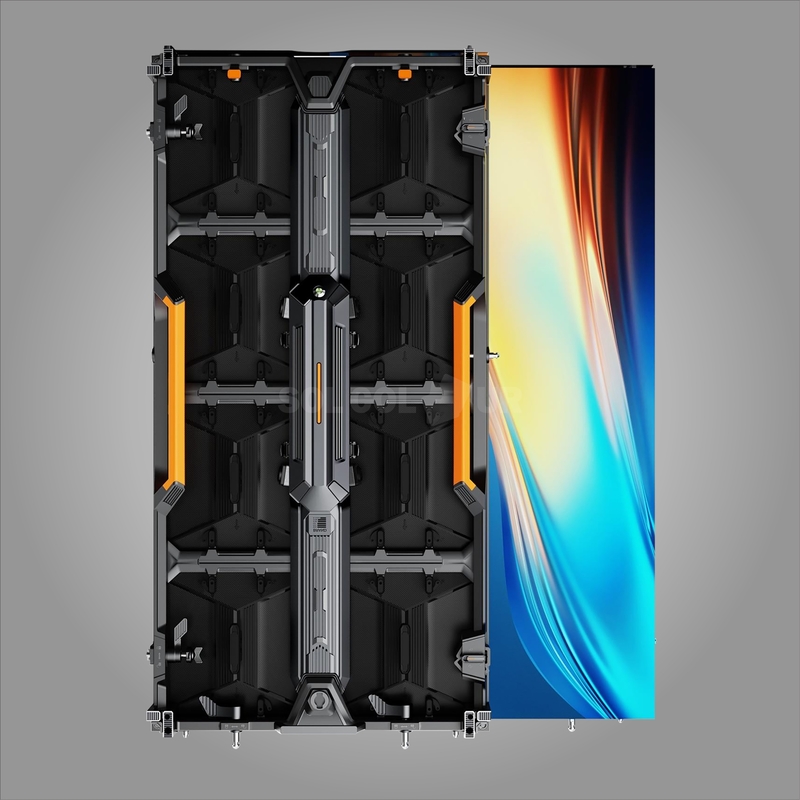

150W Indoor Rental LED Screen Led Video Panels Energy Efficiency 0

150W Indoor Rental LED Screen Led Video Panels Energy Efficiency 1
