Indoor HD Rental Led Display HUB Connecting With Die Casting Aluminum Cabinet

Name: Indoor HD Rental Led Display HUB Connecting With Die Casting Aluminum Cabinet
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P2.604/2.84/P2.976/P3.91
Price: 20.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P2.604/2.84/P2.976/P3.91

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1sqm

Price: Negotiated

Packaging Details: Flight case, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Aluminum Cabinet HD Rental Led Display, HD Rental Led Display HUB Connecting, HUB Connecting  rental led Screen


LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified	Refresh Rate:	3840Hz-7680Hz
Brightness:	≥700 Cd/m2	Maintenance Methods:	Rear & Front
Module Size:	250*250mm	Cabinet Size:	500*500mm
Cabinet Material:	Die Casting Aluminum	Cabinet Weight:	4.2 Kg
Protection Level:	IP30	Max. Power Consumption:	≤430W/㎡
Ave. Power Consumption:	≤150W/㎡	Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified
Refresh Rate:	3840Hz-7680Hz
Brightness:	≥700 Cd/m2
Maintenance Methods:	Rear & Front
Module Size:	250*250mm
Cabinet Size:	500*500mm
Cabinet Material:	Die Casting Aluminum
Cabinet Weight:	4.2 Kg
Protection Level:	IP30
Max. Power Consumption:	≤430W/㎡
Ave. Power Consumption:	≤150W/㎡
Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

Indoor HD Rental Led Display HUB Connecting With Die Casting Aluminum Cabinet

Indoor LED Screen HUB Connecting 500x500mm Die Casting Aluminum Cabinet

Product features:

1. Self-developed private model products, modular design, support rear/front maintenance.

2. The ergonomic arc lock design allows for compatibility with both flat and curved screens, fulfilling different customers' requirements for flexible screen splicing.

3. The die-cast aluminum cabinet is lightweight and thin, with multiple protection layers, minimizing maintenance and providing high toughness, precision, and durability against deformation.

4. With an average power consumption of just 200W, it is both energy-efficient and environmentally friendly.

5. 120° ultra-wide viewing angle.

6. With RGB deep grayscale processing, the colors are rich and nuanced, producing sharp and natural picture quality.

7. The HUB connection, tailored for rental use, provides screwless fixing and enables fast, easy disassembly and installation.

Product technical specifications:

Item	Parameter	Specification
Module parameters	Pitch	2.604mm	2.84mm	2.976mm	3.91mm
	LEDs	SMD1515			SMD2020
	Lead wire	Copper
	Module resolution	96*96 dots	88*88 dots	84*84 dots	64*64 dots
	Module size ± tolerances	249.90±0.1(V)* 249.90±0.1(H)*17.9±0.5(D)
	Module weight ± tolerances	≤0.55 KGS
	Pixel density	147456 dots/㎡	123904 dots/㎡	122976 dots/㎡	65536 dots/㎡
Cabinet parameters	Cabinet size ± tolerances	499.9(±0.1)(H)499.9(±0.1)(V) 76(±0.2)(D)
	Cabinet flatness	≤1.0mm
	Cabinet material	Die casting aluminum
	Cabinet weight ± tolerance	≤4.2 KGS
Cabinet parameters of screen	Module quantity for 1 cabinet	2*2=4 PCS
	Cabinet resolution	192*192 dots	176*176 dots	168*168 dots	128*128 dots
	Cabinet + Module size ± tolerance	499.9(±0.1)(H)499.9(±0.1)(V)85(±0.2)(D)
	Cabinet + Module weight ± tolerance	7.0 KGS
	Maintenance methods	Rear/Front
	Flatness	≤1.0mm
	Screen seams	≤1.0mm
Optical parameters	Pixel-by-pixel brightness correction	Support
	Pixel-by-pixel chromaticity correction	Support
	White balance brightness	≥700 cd/m2
	Color temperature	3000K-15000K
	Horizontal viewing angle	≥120°
	Vertical viewing angle	≥110°
	Viewing distance(=PITCH*1)	≥3m
Electrical parameters	Max. power consumption of cabinet	≤200 W
	Ave. power consumption	≤165W/㎡	≤150W/㎡
	Max. power consumption	≤470W/㎡	≤430W/㎡
	Power supply requirements	220-240V AC
Processing performance	Scan	32S	30S	21S	16S
	Frame rate	50-60Hz
	Refresh rate	3840Hz-7680Hz
	Drive mode	Constant current
	Grayscale	14bits - 16bits
Control system	Control method	Ethernet port
	Control the distance	Cat5e Unshielded Twisted Pai
	Signal input	HDMI,DVI
	Brightness adjust	Manual/automatic/remote control
Operational parameters	Continuous working hours	≥ 5000hrs
	Mean time between failures	≥ 5000hrs
	Discrete out-of-control points	0 before shipping
	Continuous runaway points	0
	Blind spot rate	0 before shipping
	Screen temperature rise	≤ 65℃
Usage parameters	Typical life values	50000hrs
	Lamp temperature	≤60°
	Operating temperature	-10°~50°
	Storage temperature	-20°~50°
	Operating humidity	10~65%RH no condensation
	Storage humidity	10~65%RH no condensation
Protection	Protection level	IP30
Certification	CE/FCC/ROHS/ISO	/

Reference pictures:

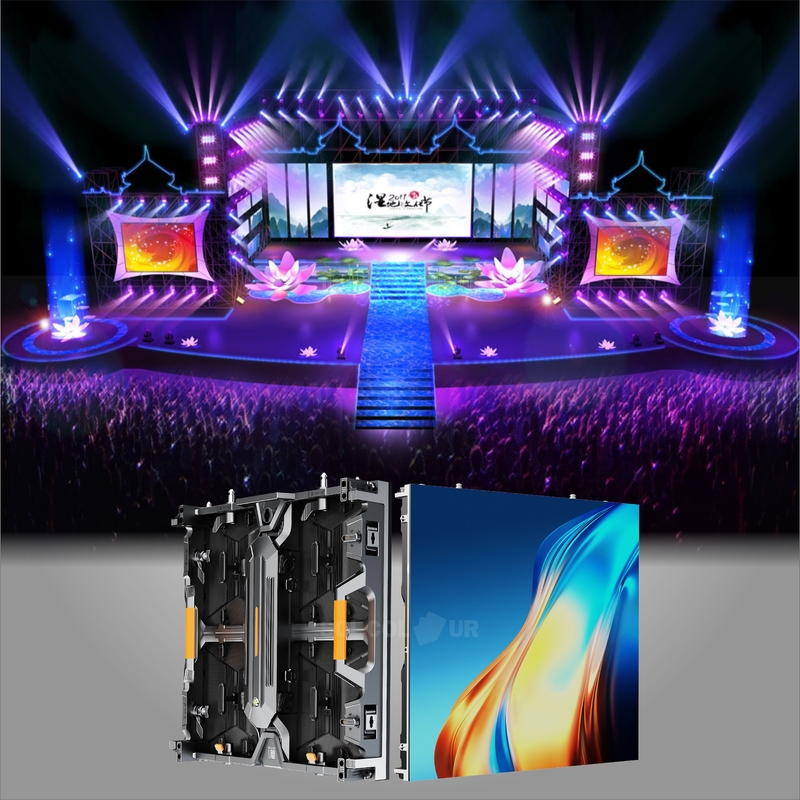

Indoor HD Rental Led Display HUB Connecting With Die Casting Aluminum Cabinet 0

Indoor HD Rental Led Display HUB Connecting With Die Casting Aluminum Cabinet 1
