Curved Lock Indoor Rental LED Screen 500x500mm Event Led Screen

Name: Curved Lock Indoor Rental LED Screen 500x500mm Event Led Screen
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P2.604/P2.976/P3.91/P4.81
Price: 20.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P2.604/P2.976/P3.91/P4.81

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1sqm

Price: Negotiated

Packaging Details: Flight case, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Indoor Rental LED Screen 2.976mm, 2.976mm event led screen, Customization Indoor Rental LED Screen


LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified	Refresh Rate:	3840Hz-7680Hz
Brightness:	600-1000 Cd/m2	Maintenance Methods:	Rear & Front
Module Size:	250*250mm	Cabinet Size:	500*500mm
Cabinet Material:	Die Casting Aluminum	Cabinet Weight:	7 Kg
Protection Level:	IP30	Max. Power Consumption:	≤700W/㎡
Ave. Power Consumption:	≤200W/㎡	Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified
Refresh Rate:	3840Hz-7680Hz
Brightness:	600-1000 Cd/m2
Maintenance Methods:	Rear & Front
Module Size:	250*250mm
Cabinet Size:	500*500mm
Cabinet Material:	Die Casting Aluminum
Cabinet Weight:	7 Kg
Protection Level:	IP30
Max. Power Consumption:	≤700W/㎡
Ave. Power Consumption:	≤200W/㎡
Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

Curved Lock Indoor Rental LED Screen 500x500mm Event Led Screen

Product features:

1. Modular design, support rear/front maintenance.

2. The human-centered arc lock design ensures compatibility with both straight and curved screens, addressing different customer demands for flexible splicing.

3. With multiple protections in place, maintenance is minimized. The thin, die-cast aluminum housing offers high toughness, precision, and durability against deformation.

4. Consuming an average of only 200W, it promotes both energy savings and environmental sustainability.

5. 120 degree super wide viewing angle

6. RGB deep grayscale processing enhances color richness and delicacy, ensuring sharp and lifelike picture quality.

7. The HUB connection is suitable for rental, uses screwless fixing, and is easy and quick to disassemble and install.

Product technical specifications:

Item	Parameter	Specification
Module parameters	Pitch	2.604mm	2.976mm	3.91mm	4.81mm
	Module resolution	96*96 dots	84*84 dots	64*64 dots	52*52 dots
	Module size	250x250mm
	Module weight	≤0.55 KGS
	Pixel density	147456 dots/㎡	112896 dots/㎡	65536 dots/㎡	43264 dots/㎡
Cabinet parameters	Cabinet size	500x500mm
	Cabinet flatness	≤1.0mm
	Cabinet material	Die casting aluminum
Cabinet parameters of screen	Module quantity for 1 cabinet	2*2=4 PCS
	Cabinet resolution	192*192 dots	168*168 dots	128*128 dots	104*104 dots
	Cabinet + Module weight	7.0 KGS
	Maintenance methods	Rear/Front
	Flatness	≤1.0mm
	Screen seams	≤1.0mm
Optical parameters	Pixel-by-pixel brightness correction	Support
	Pixel-by-pixel chromaticity correction	Support
	White balance brightness	600-1000 cd/m2
	Color temperature	3000K-15000K
	Horizontal viewing angle	≥120°
	Vertical viewing angle	≥110°
	Viewing distance(=PITCH*1)	≥3m
Electrical parameters	Max. power consumption	≤700 W
	Ave. power consumption	≤200 W
	Power supply requirements	220-240V AC
Processing performance	Scan	32S	28S	16S	13S
	Frame rate	50-60Hz
	Refresh rate	3840Hz-7680Hz
	Drive mode	Constant current
	Grayscale	14bits - 16bits
Control system	Control method	Ethernet port
	Control the distance	Cat5e Unshielded Twisted Pai
	Signal input	HDMI,DVI
	Brightness adjust	Manual/automatic/remote control
Operational parameters	Continuous working hours	≥ 5000hrs
	Mean time between failures	≥ 5000hrs
	Discrete out-of-control points	0 before shipping
	Continuous runaway points	0
	Blind spot rate	0 before shipping
	Screen temperature rise	≤ 65℃
Usage parameters	Typical life values	50000hrs
	Lamp temperature	≤60°
	Operating temperature	-10°~50°
	Storage temperature	-20°~50°
	Operating humidity	10~65%RH no condensation
	Storage humidity	10~65%RH no condensation
Protection	Protection level	IP30
Certification	CE/FCC/ROHS/ISO	/

Reference pictures:

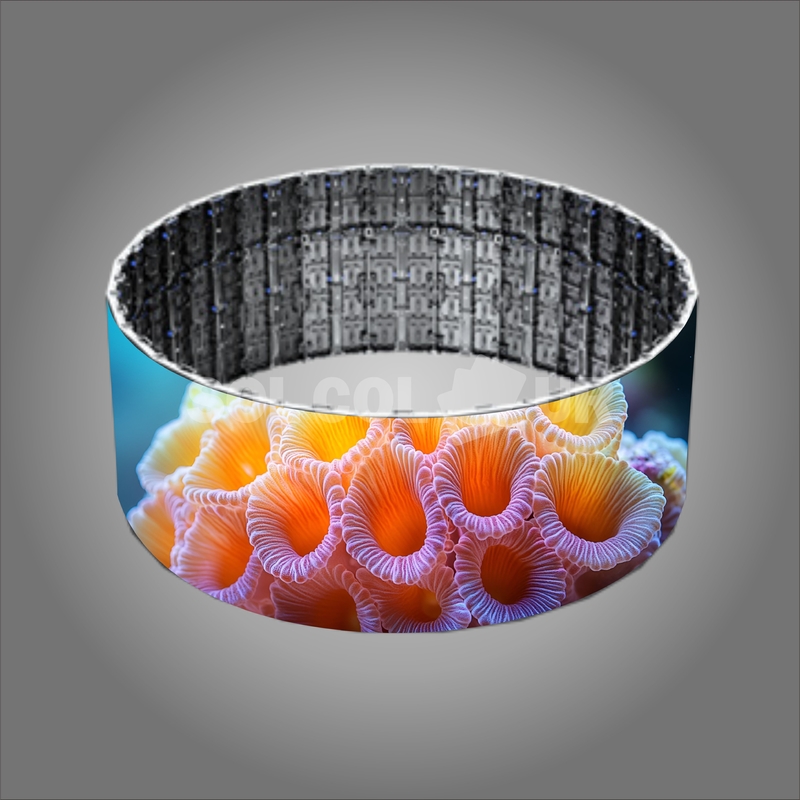

Curved Lock Indoor Rental LED Screen 500x500mm Event Led Screen 0
