Name: P2.604 500x500mm Indoor Rental LED Screen Display IP30 High Contrast
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P2.604
Price: 20.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P2.604

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1sqm

Price: Negotiated

Packaging Details: Flight case, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High Contrast  Indoor Rental LED Screen, Rental LED Screen Display IP30, P2.604  Indoor Rental LED Screen


LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified	Refresh Rate:	3840Hz-7680Hz
Brightness:	600-1000 Cd/㎡	Scan Mode:	1/32 Scan
Maintenance Methods:	Rear & Front	Module Size:	250*250mm
Cabinet Size:	500*500mm	Cabinet Material:	Die Casting Aluminum
Cabinet Weight:	7 Kg	Protection Level:	IP30
Max. Power Consumption:	≤700W/㎡	Ave. Power Consumption:	≤200W/㎡
Gray Level:	14 Bits-16 Bits	Installation:	Hanging/ Ground

LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified
Refresh Rate:	3840Hz-7680Hz
Brightness:	600-1000 Cd/㎡
Scan Mode:	1/32 Scan
Maintenance Methods:	Rear & Front
Module Size:	250*250mm
Cabinet Size:	500*500mm
Cabinet Material:	Die Casting Aluminum
Cabinet Weight:	7 Kg
Protection Level:	IP30
Max. Power Consumption:	≤700W/㎡
Ave. Power Consumption:	≤200W/㎡
Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

P2.604 500x500mm Indoor Rental LED Screen Display IP30 High Contrast

Indoor P2.604 High Contrast 500x500mm Die Casting Aluminum Rental LED Screen Display IP30

Product features:

1. The flexible arc lock design can adapt to both flat and curved screens, catering to the diverse screen splicing needs of different customers.

2. Offering multiple protections and requiring less maintenance, the die-cast aluminum cabinet is light, thin, tough, precise, and resistant to deformation.

3. The power consumption averages just 200W, ensuring energy conservation and eco-friendliness.

4. 120-degree wide-angle view.

5. RGB deep grayscale processing enhances color richness and delicacy, ensuring sharp and lifelike picture quality.

6. Convenient and fast to install and take apart.

Product technical specifications:

Item	Parameter	Specification
Module parameters	Pitch	2.604mm
	LEDs	SMD1515
	Lead wire	Copper
	Module resolution	96*96 dots
	Module size ± tolerances	249.90±0.1(V)* 249.90±0.1(H)*17.9±0.5(D)
	Module weight ± tolerances	≤0.55 KGS
	Pixel density	147456 dots/㎡
Cabinet parameters	Cabinet size ± tolerances	499.9(±0.1)(H)499.9(±0.1)(V) 76(±0.2)(D)
	Cabinet flatness	≤1.0mm
	Cabinet material	Die casting aluminum
	Cabinet weight ± tolerance	≤4.2 KGS
Cabinet parameters of screen	Module quantity for 1 cabinet	2*2=4 PCS
	Cabinet resolution	192*192 dots
	Cabinet + Module size ± tolerance	499.9(±0.1)(H)499.9(±0.1)(V)85(±0.2)(D)
	Cabinet + Module weight ± tolerance	7.0 KGS
	Maintenance methods	Rear/Front
	Flatness	≤1.0mm
	Screen seams	≤1.0mm
Optical parameters	Pixel-by-pixel brightness correction	Support
	Pixel-by-pixel chromaticity correction	Support
	White balance brightness	600-1000 cd/㎡
	Color temperature	3000K-15000K
	Horizontal viewing angle	≥120°
	Vertical viewing angle	≥110°
	Viewing distance(=PITCH*1)	≥3m
Electrical parameters	Max. power consumption of cabinet	≤200 W
	Ave. power consumption	≤200W/㎡
	Max. power consumption	≤700W/㎡
	Power supply requirements	220-240V AC
Processing performance	Scan	32S
	Frame rate	50-60Hz
	Refresh rate	3840Hz-7680Hz
	Drive mode	Constant current
	Grayscale	14bits - 16bits
Control system	Control method	Ethernet port
	Control the distance	Cat5e Unshielded Twisted Pai
	Signal input	HDMI,DVI
	Brightness adjust	Manual/automatic/remote control
Operational parameters	Continuous working hours	≥ 5000hrs
	Mean time between failures	≥ 5000hrs
	Discrete out-of-control points	0 before shipping
	Continuous runaway points	0
	Blind spot rate	0 before shipping
	Screen temperature rise	≤ 65℃
Usage parameters	Typical life values	50000hrs
	Lamp temperature	≤60°
	Operating temperature	-10°~50°
	Storage temperature	-20°~50°
	Operating humidity	10~65%RH no condensation
	Storage humidity	10~65%RH no condensation
Protection	Protection level	IP30
Certification	CE/FCC/ROHS/ISO	/

Reference pictures:

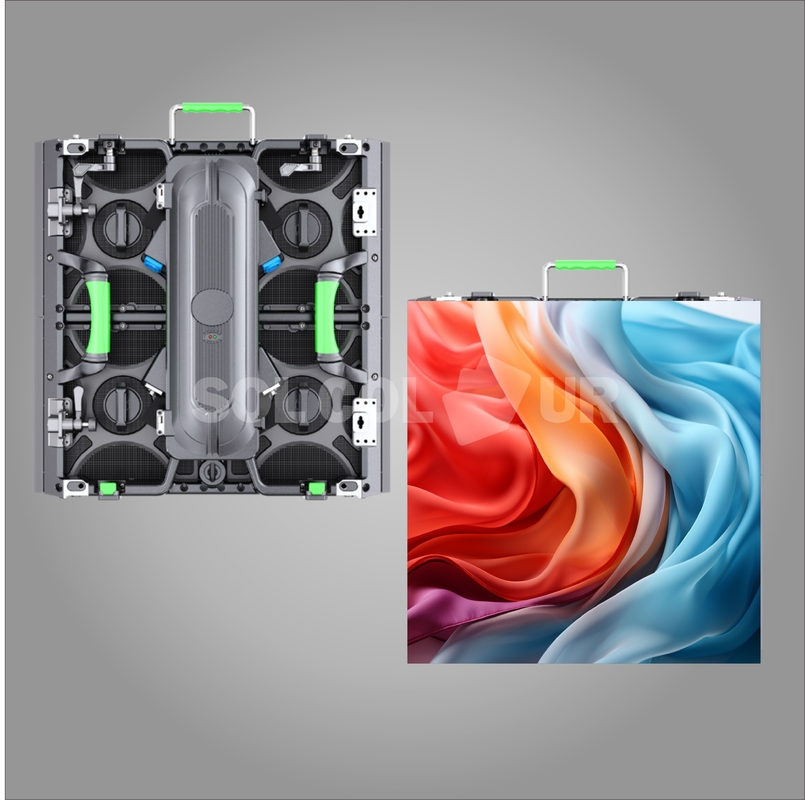

P2.604 500x500mm Indoor Rental LED Screen Display IP30 High Contrast 0

P2.604 500x500mm Indoor Rental LED Screen Display IP30 High Contrast 1

P2.604 500x500mm Indoor Rental LED Screen Display IP30 High Contrast 2
