Name: P2.976 Indoor Rental Led Display Screen IP30 High Refresh Rate
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P2.976
Price: 20.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P2.976

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1sqm

Price: Negotiated

Packaging Details: Flight case, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                P2.976 Indoor Rental Led Display, P2.976  Rental Led Display Screen, High Refresh Rate  Rental LED Screen


LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified	Refresh Rate:	3840Hz-7680Hz
Brightness:	600-1000 Cd/㎡	Scan Mode:	1/21 Scan
Maintenance Methods:	Rear & Front	Module Size:	250*250mm
Cabinet Size:	500*500mm	Cabinet Material:	Die Casting Aluminum
Cabinet Weight:	7 Kg	Protection Level:	IP30
Max. Power Consumption:	≤700W/㎡	Ave. Power Consumption:	≤200W/㎡
Gray Level:	14 Bits-16 Bits	Installation:	Hanging/ Ground

LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified
Refresh Rate:	3840Hz-7680Hz
Brightness:	600-1000 Cd/㎡
Scan Mode:	1/21 Scan
Maintenance Methods:	Rear & Front
Module Size:	250*250mm
Cabinet Size:	500*500mm
Cabinet Material:	Die Casting Aluminum
Cabinet Weight:	7 Kg
Protection Level:	IP30
Max. Power Consumption:	≤700W/㎡
Ave. Power Consumption:	≤200W/㎡
Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

P2.976 Indoor Rental Led Display Screen IP30 High Refresh Rate

Indoor P2.976 High Refresh Rate 500x500mm Rental LED Screen Display IP30

Product features:

1. Its humanized arc lock design supports both flat and curved screens, accommodating the flexible screen splicing needs of various clients.

2. With multiple protections and reduced maintenance, the light and thin die-cast aluminum cabinet offers strong toughness, high precision, and resistance to deformation.

3. The power consumption averages only up to 200W, making it eco-friendly and energy-saving.

4. 120-degree wide-angle view.

5. RGB deep grayscale processing delivers rich, delicate colors and provides clear, natural image quality.

6. Assembly and disassembly are both simple and efficient.

Product technical specifications:

Item	Parameter	Specification
Module parameters	Pitch	2.976mm
	LEDs	SMD1515
	Lead wire	Copper
	Module resolution	84*84 dots
	Module size ± tolerances	249.90±0.1(V)* 249.90±0.1(H)*17.9±0.5(D)
	Module weight ± tolerances	≤0.55 KGS
	Pixel density	122976 dots/㎡
Cabinet parameters	Cabinet size ± tolerances	499.9(±0.1)(H)499.9(±0.1)(V) 76(±0.2)(D)
	Cabinet flatness	≤1.0mm
	Cabinet material	Die casting aluminum
	Cabinet weight ± tolerance	≤4.2 KGS
Cabinet parameters of screen	Module quantity for 1 cabinet	2*2=4 PCS
	Cabinet resolution	168*168 dots
	Cabinet + Module size ± tolerance	499.9(±0.1)(H)499.9(±0.1)(V)85(±0.2)(D)
	Cabinet + Module weight ± tolerance	7.0 KGS
	Maintenance methods	Rear/Front
	Flatness	≤1.0mm
	Screen seams	≤1.0mm
Optical parameters	Pixel-by-pixel brightness correction	Support
	Pixel-by-pixel chromaticity correction	Support
	White balance brightness	600-1000 cd/㎡
	Color temperature	3000K-15000K
	Horizontal viewing angle	≥120°
	Vertical viewing angle	≥110°
	Viewing distance(=PITCH*1)	≥3m
Electrical parameters	Max. power consumption of cabinet	≤200 W
	Ave. power consumption	≤200W/㎡
	Max. power consumption	≤700W/㎡
	Power supply requirements	220-240V AC
Processing performance	Scan	21S
	Frame rate	50-60Hz
	Refresh rate	3840Hz-7680Hz
	Drive mode	Constant current
	Grayscale	14bits - 16bits
Control system	Control method	Ethernet port
	Control the distance	Cat5e Unshielded Twisted Pai
	Signal input	HDMI,DVI
	Brightness adjust	Manual/automatic/remote control
Operational parameters	Continuous working hours	≥ 5000hrs
	Mean time between failures	≥ 5000hrs
	Discrete out-of-control points	0 before shipping
	Continuous runaway points	0
	Blind spot rate	0 before shipping
	Screen temperature rise	≤ 65℃
Usage parameters	Typical life values	50000hrs
	Lamp temperature	≤60°
	Operating temperature	-10°~50°
	Storage temperature	-20°~50°
	Operating humidity	10~65%RH no condensation
	Storage humidity	10~65%RH no condensation
Protection	Protection level	IP30
Certification	CE/FCC/ROHS/ISO	/

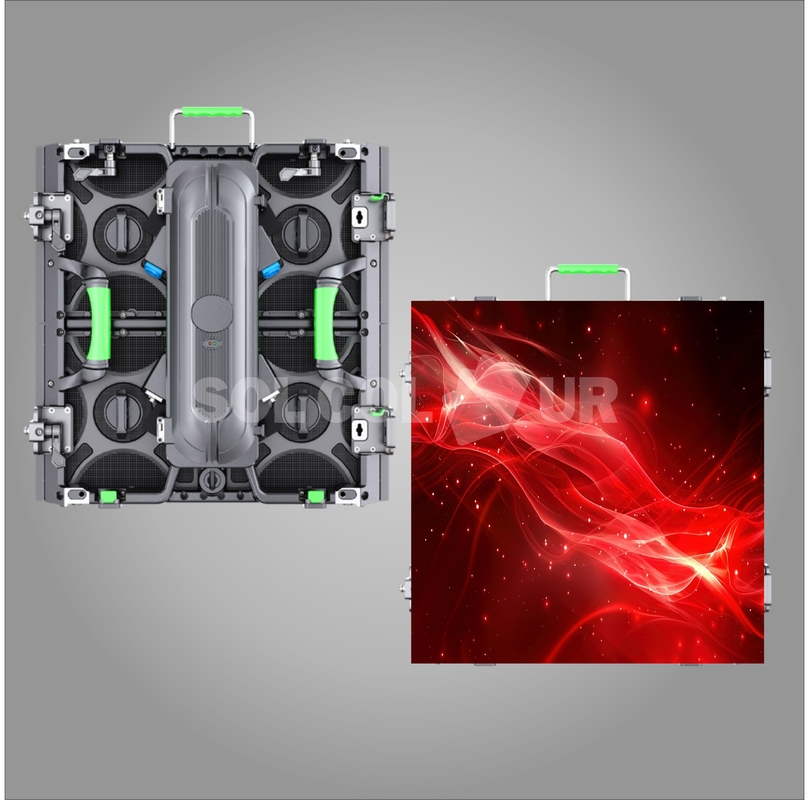

Reference pictures:

P2.976 Indoor Rental Led Display Screen IP30 High Refresh Rate 0

P2.976 Indoor Rental Led Display Screen IP30 High Refresh Rate 1
