Multiple Protection Outdoor Rental LED Display Screen Energy Saving

Name: Multiple Protection Outdoor Rental LED Display Screen Energy Saving
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P2.604/P2.976/P3.91/P4.81
Price: 20.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P2.604/P2.976/P3.91/P4.81

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1sqm

Price: Negotiated

Packaging Details: Flight case, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                2.84mm Outdoor Rental LED Display, Multiple protection Outdoor Rental LED Display, Rental LED Display Screen energy saving


LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified	Refresh Rate:	3840Hz-7680Hz
Brightness:	4000-5000 Cd/㎡	Maintenance Methods:	Rear & Front
Module Size:	250*250mm	Cabinet Size:	500*1000mm
Cabinet Material:	Die Casting Aluminum	Cabinet Weight:	12.5 Kg
Protection Level:	IP65	Max. Power Consumption:	≤700W/㎡
Ave. Power Consumption:	≤200W/㎡	Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified
Refresh Rate:	3840Hz-7680Hz
Brightness:	4000-5000 Cd/㎡
Maintenance Methods:	Rear & Front
Module Size:	250*250mm
Cabinet Size:	500*1000mm
Cabinet Material:	Die Casting Aluminum
Cabinet Weight:	12.5 Kg
Protection Level:	IP65
Max. Power Consumption:	≤700W/㎡
Ave. Power Consumption:	≤200W/㎡
Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

Multiple Protection Outdoor Rental LED Display Screen Energy Saving

Outdoor LED Screen 500x1000mm Die Casting Aluminum Cabinet HUB Connection

Product features:

1. Designed for flexibility, the user-friendly arc lock is compatible with both flat and curved screens, meeting the diverse needs of customers for screen splicing.

2. The die-cast aluminum cabinet is lightweight and thin, with multiple protection layers, minimizing maintenance and providing high toughness, precision, and durability against deformation.

3. The power consumption averages only up to 200W, making it eco-friendly and energy-saving.

4. 120-degree wide-angle view.

5. With RGB deep grayscale processing, the colors are rich and nuanced, producing sharp and natural picture quality.

6. For rental purposes, the HUB connection uses screwless fixing, ensuring easy and fast assembly and disassembly.

Product technical specifications:

Item	Parameter	Specification
Module parameters	Pitch	2.604mm	2.976mm	3.91mm	4.81mm
	Module resolution	96*96 dots	84*84 dots	64*64 dots	52*52 dots
	Module size	250x250mm
	Module weight	≤0.55 KGS
	Pixel density	147456 dots/㎡	112896 dots/㎡	65536 dots/㎡	43264 dots/㎡
Cabinet parameters	Cabinet size	500x1000mm
	Cabinet flatness	≤1.0mm
	Cabinet material	Die casting aluminum
Cabinet parameters of screen	Module quantity for 1 cabinet	2*4=8 PCS
	Cabinet resolution	192*192 dots	168*168 dots	128*128 dots	104*104 dots
	Cabinet + Module weight	12.5 KGS
	Maintenance methods	Rear
	Flatness	≤1.0mm
	Screen seams	≤1.0mm
Optical parameters	Pixel-by-pixel brightness correction	Support
	Pixel-by-pixel chromaticity correction	Support
	White balance brightness	4000-5000 cd/㎡
	Color temperature	3000K-15000K
	Horizontal viewing angle	≥120°
	Vertical viewing angle	≥110°
	Viewing distance(=PITCH*1)	≥3m
Electrical parameters	Max. power consumption	≤700 W
	Ave. power consumption	≤200 W
	Power supply requirements	220-240V AC
Processing performance	Scan	32S	28S	16S	13S
	Frame rate	50-60Hz
	Refresh rate	3840Hz-7680Hz
	Drive mode	Constant current
	Grayscale	14bits - 16bits
Control system	Control method	Ethernet port
	Control the distance	Cat5e Unshielded Twisted Pai
	Signal input	HDMI,DVI
	Brightness adjust	Manual/automatic/remote control
Operational parameters	Continuous working hours	≥ 5000hrs
	Mean time between failures	≥ 5000hrs
	Discrete out-of-control points	0 before shipping
	Continuous runaway points	0
	Blind spot rate	0 before shipping
	Screen temperature rise	≤ 65℃
Usage parameters	Typical life values	50000hrs
	Lamp temperature	≤60°
	Operating temperature	-10°~50°
	Storage temperature	-20°~50°
	Operating humidity	10~65%RH no condensation
	Storage humidity	10~65%RH no condensation
Protection	Protection level	IP65
Certification	CE/FCC/ROHS/ISO	/

Reference pictures:

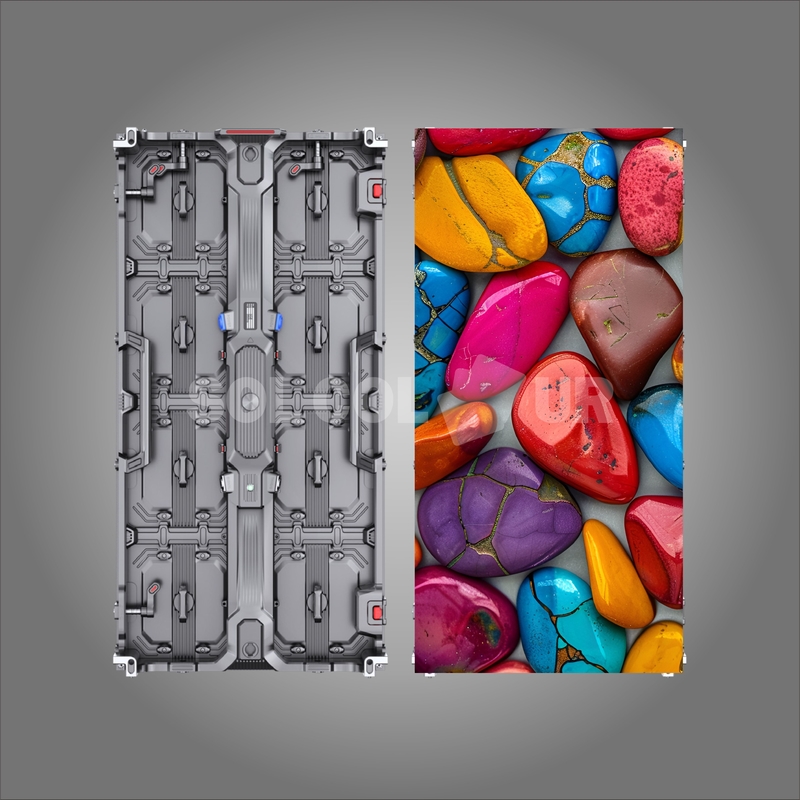

Multiple Protection Outdoor Rental LED Display Screen Energy Saving 0

Multiple Protection Outdoor Rental LED Display Screen Energy Saving 1
