HUB Connection Outdoor LED Modular Screen Ip65 LED Display Multiple Protection

Name: HUB Connection Outdoor LED Modular Screen Ip65 LED Display Multiple Protection
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P2.604/P2.976/P3.91/P4.81
Price: 20.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P2.604/P2.976/P3.91/P4.81

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1sqm

Price: Negotiated

Packaging Details: Flight case, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                HUB connection Led Modular Screen, HUB connection  Ip65 LED Display, Led Modular Screen  Multiple Protection


LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified	Refresh Rate:	3840Hz-7680Hz
Brightness:	4000-5000 Cd/m2	Maintenance Methods:	Rear & Front
Module Size:	250*250mm	Cabinet Size:	500*500mm
Cabinet Material:	Die Casting Aluminum	Cabinet Weight:	7.5 Kg
Protection Level:	IP65	Max. Power Consumption:	≤700W/㎡
Ave. Power Consumption:	≤200W/㎡	Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified
Refresh Rate:	3840Hz-7680Hz
Brightness:	4000-5000 Cd/m2
Maintenance Methods:	Rear & Front
Module Size:	250*250mm
Cabinet Size:	500*500mm
Cabinet Material:	Die Casting Aluminum
Cabinet Weight:	7.5 Kg
Protection Level:	IP65
Max. Power Consumption:	≤700W/㎡
Ave. Power Consumption:	≤200W/㎡
Gray Level:	14 Bits-16 Bits
Installation:	Hanging/ Ground

HUB Connection Outdoor LED Modular Screen Ip65 LED Display Multiple Protection

Product features:

1. Modular design, support front/rear maintenance.

2. The ergonomic arc lock design supports compatibility with both straight and curved screens, fulfilling various customer requirements for flexible screen splicing.

3. With multiple protections and reduced maintenance, the light and thin die-cast aluminum cabinet offers strong toughness, high precision, and resistance to deformation.

4. With an average power consumption of just 200W, it is both energy-efficient and environmentally friendly.

5. 120-degree wide-angle view.

6. RGB deep grayscale processing delivers rich, delicate colors and provides clear, natural image quality.

7. The HUB connection, designed for rentals, features a screwless fixing system that makes installation and removal both quick and simple.

Product technical specifications:

Item	Parameter	Specification
Module parameters	Pitch	2.604mm	2.976mm	3.91mm	4.81mm
	Module resolution	96*96 dots	84*84 dots	64*64 dots	52*52 dots
	Module size	250x250mm
	Module weight	≤0.55 KGS
	Pixel density	147456 dots/㎡	112896 dots/㎡	65536 dots/㎡	43264 dots/㎡
Cabinet parameters	Cabinet size	500x500mm
	Cabinet flatness	≤1.0mm
	Cabinet material	Die casting aluminum
Cabinet parameters of screen	Module quantity for 1 cabinet	2*2=4 PCS
	Cabinet resolution	192*192 dots	168*168 dots	128*128 dots	104*104 dots
	Cabinet + Module weight	7.5 KGS
	Maintenance methods	Rear/Front
	Flatness	≤1.0mm
	Screen seams	≤1.0mm
Optical parameters	Pixel-by-pixel brightness correction	Support
	Pixel-by-pixel chromaticity correction	Support
	White balance brightness	4000-5000 cd/m2
	Color temperature	3000K-15000K
	Horizontal viewing angle	≥120°
	Vertical viewing angle	≥110°
	Viewing distance(=PITCH*1)	≥3m
Electrical parameters	Max. power consumption	≤700 W
	Ave. power consumption	≤200 W
	Power supply requirements	220-240V AC
Processing performance	Scan	32S	28S	16S	13S
	Frame rate	50-60Hz
	Refresh rate	3840Hz-7680Hz
	Drive mode	Constant current
	Grayscale	14bits - 16bits
Control system	Control method	Ethernet port
	Control the distance	Cat5e Unshielded Twisted Pai
	Signal input	HDMI,DVI
	Brightness adjust	Manual/automatic/remote control
Operational parameters	Continuous working hours	≥ 5000hrs
	Mean time between failures	≥ 5000hrs
	Discrete out-of-control points	0 before shipping
	Continuous runaway points	0
	Blind spot rate	0 before shipping
	Screen temperature rise	≤ 65℃
Usage parameters	Typical life values	50000hrs
	Lamp temperature	≤60°
	Operating temperature	-10°~50°
	Storage temperature	-20°~50°
	Operating humidity	10~65%RH no condensation
	Storage humidity	10~65%RH no condensation
Protection	Protection level	IP65
Certification	CE/FCC/ROHS/ISO	/

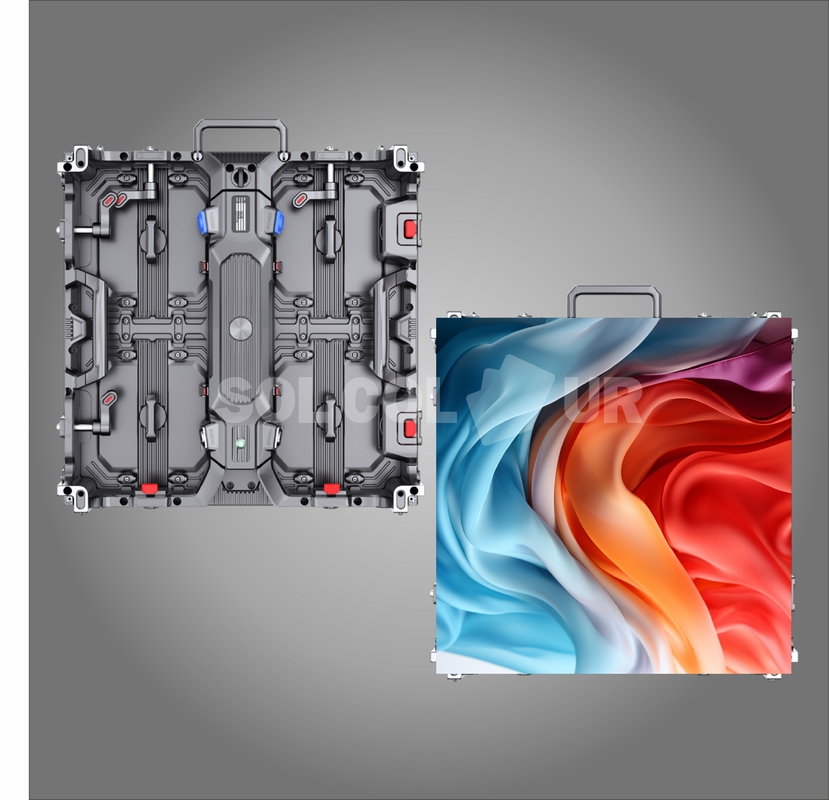

Reference pictures:

HUB Connection Outdoor LED Modular Screen Ip65 LED Display Multiple Protection 0
