High Definition Led Rental Screen P3 P4 P5 Led Display Synchronization Control
High Definition Led Rental Screen P3 P4 P5 Led Display Synchronization Control

High Definition Led Rental Screen P3 P4 P5 Led Display Synchronization Control

Product Details

Place of Origin: SHENZHEN CHINA

Brand Name: sol colur

Certification: FCC、CE、IP65

Model Number: p5

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1pieces

Price: Negotiable

Packaging Details: Flight Case , Wooden Box , Carton

Delivery Time: 15-20days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meters/ per month

Get Best Price

Product Details

Product Description
Highlight:

P5 Led Display Synchronization Control

,

Led Rental Screen Synchronization Control

,

High Definition P5 Led Display

Product Name:
P5
Pixel Pitch:
5mm
Weight:
0.21kg
Pixel Density:
40000 Dots/m2
Package Mode:
Nationstar SMD 2121
Product Name:
P5
Pixel Pitch:
5mm
Weight:
0.21kg
Pixel Density:
40000 Dots/m2
Package Mode:
Nationstar SMD 2121
High Definition Led Rental Screen P3 P4 P5 Led Display Synchronization Control

Indoor 5mm high definition led video wall full color p3 p4 p5 rental led screen



Detailed Product Description:



   Module size:                     320*160mm                         Brightness:              900-1000nits

   Control method:                Synchronization                   Color:                      1R1G1B

   Module number:                Indoor  P5                             Package mode:      Nationstar SMD2121

   Warranty:                           2  Years                                Pixel resolution:      32dots(W)*32dots(H)





Product Parameters:

Unit Module Item Parameter
Model Number SF-TS5.0-16S-A
Module size 320mm*160mm
Pixel pitch 5mm
Pixels Density 40000dots/m2
Pixel configuration 1R1G1B
Package mode Nationstar SMD2121
Pixel resolution 32dots(W)*32dots(H)
Max Power 25W
Module thickness 14.27mm
Weight 0.21kg
Drive type Constant drive
Scan mode 1/16
Port type HUB75-A
Brightness of white balance ≥1600cd/m2

LED

Cabinet



 Dimension 640mm*640mm*
Monomer Module Number 16pcs
Power supply 5V/40A*2pc
Thermal discharge fan 2pcs
Pixel per cabinet 128mm*128mm
Best viewing distance 5M～30M
Best viewing angle 110°(W) 110°(H)
Temperature

storage:-35℃～+85℃

working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 85mm
Power Working voltage AC220V±10%
Average Power consumption 500W/㎡
Max.Power consumption ≤1180W/㎡
Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4 or more
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

 Driving device Constant drive IC
Refresh frequency ≥1080HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥9000hours
Power switch Automatic switch




Advantage:



1.Low attenuation,high gray level,good stability,anti-static

2.Ultra high brightness,low attenuation,high reliability and weather ability.

3.Large viewing angle and smooth displaying provide excellent visual effect from every angle.

4.High refresh rate, high gray scale, ghost-canceling, low power consumption, and dot-by-dot-calibration.

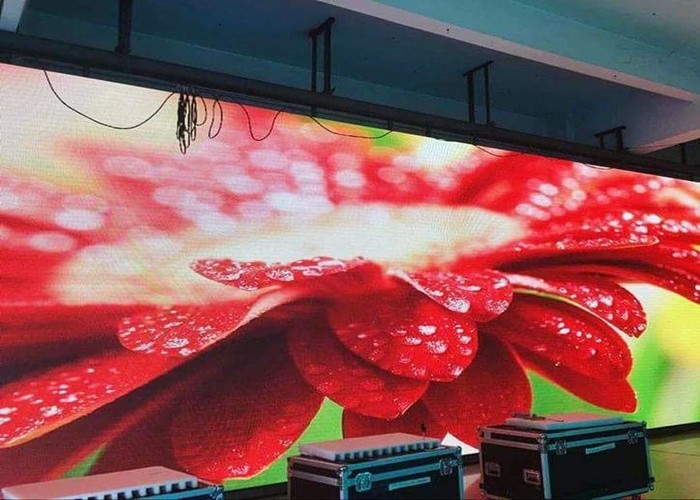

Project Show:
 High Definition Led Rental Screen P3 P4 P5 Led Display Synchronization Control 0
