Highlight:
                                                                                                                                                                                                                                                P5 Outdoor Rental LED Display, SMD Outdoor Rental LED Display, Constant Drive Outdoor Rental LED Display


Product Name:	P5	Module Size:	160*160mm
Max Power:	25W	Weight:	0.37kg
Scan Mode:	1/8	Drive Type:	Constant Drive

Product Name:	P5
Module Size:	160*160mm
Max Power:	25W
Weight:	0.37kg
Scan Mode:	1/8
Drive Type:	Constant Drive

High Brightness Outdoor Rental LED Display SMD Rental Screen P5 Constant Drive

High brightness SMD rental led screen P5 outdoor rental led display / outdoor led screen

Product Description:

1) portable and practical always bring customer convenient and comfortable experience.

2) due to excellent flatness and nice uniformity of light-emitting.

3) keep high quality,low lighting decay,energy saving.

4) with high adjusttable brightness,it can fully satisfy various customer requirements.

5) synchronously adjust the brightness and color to make the true and exquisite image.

Product Parameters:

Unit Module	Item	Parameter
	Model Number	SF-SS5-8-A
	Module size	160mm*160mm
	Pixel pitch	5mm
	Pixels Density	40000dots/m2
	Pixel configuration	1R1G1B
	Package mode	Nationstar SMD2727
	Pixel resolution	32dots(W)*32dots(H)
	Max Power	25W
	Module thickness	22mm
	Weight	0.37kg
	Drive type	Constant drive
	Scan mode	1/8
	Port type	HUB75-A
	Brightness of white balance	≥5500～6000cd/m2
Cabinet	Dimension	960mm960mm100 mm
	Monomer Module Number	36pcs
	Power supply	5V/40A*6 pcs
	Thermal discharge	fan 2pcs
	Pixel per cabinet	96mm*96mm
	Best viewing distance	5M～15M
	viewing angle	120°(W) 110°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Relative humidity	10%-95%
	Thickness	122mm
Power	Working voltage	AC220V±10%
	Average Power consumption	350W/㎡
	Max.Power consumption	≤1100W/㎡
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above P4 or can more
	Operation system	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	≥1920HZ
	Grey scale/colors	4096gray level/16.7M colors
	MTBF	≥100000hours
	Power switch	Automatic switch

Advantage:

1.simple structure in linear type ,easy in installation and maintation.

2.widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places

3.strictly quality control and testing.

4.suppoort point-to-point correction function, the consistency of the color and the brightness in the process of using.

5.with the high quality raw material/mature craft scale production,the quality guaranteed.

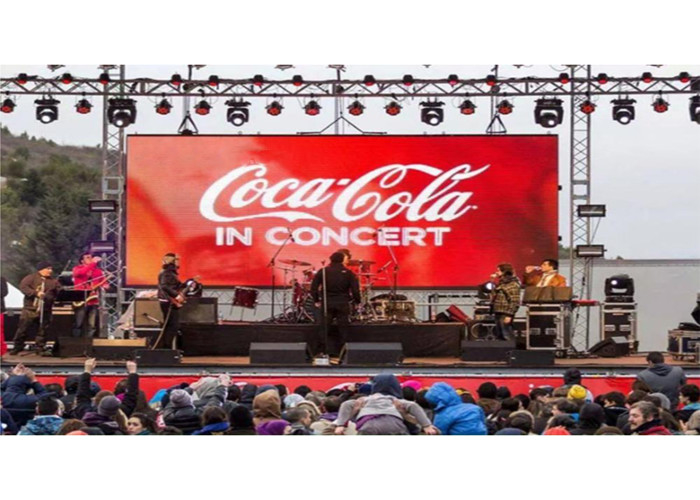

Project Show:
