Highlight:
3.91mm Curved LED Display
, Curved LED Screen Seamless Splicing
, Curved LED Display Seamless Splicing
High Refresh Rate 3.91mm Curved LED Display Screen Seamless Splicing
High Refresh Rate Curved LED Display Screen Die - Cast Aluminum Cabinet 500 X 1000mm
Product Quick Details:
1, Die-cast aluminum cabinet 500x1000mm and 500X500mm
2, Wide viewing angle
3, Seamless splicing
Product Features:
1, There are three handles for lifting cabinets, aviation plug and fast lock on each side is equipped, makes very convenient and comfortable for fast installation by one person without tools, besides guarantee seamless installation and keep smoothly
2, Die-cast aluminum with CNC is finished, the dimension tolerance of less than 0.01mm, and module shaping one time, the machining accuracy of + 0.01mm, easy to realize seamless splicing.
3, Use special heat dissipation, quiet working without fans.
4, Pixel density is 65746 dots per square meter, high resolution brings HD visual effect.
5, SMD guarantee super wide viewing angle, higher flatness and better performance, offers you clear and natural images in all directions. high quality full black leds, together with black mask, achieves clear and crystal picture.
6, Alignment hole and location pin design for installation could achieve extreme precision between cabinets, seam splicing is less than 0.05mm.
7, High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
Parameter
|
Unit Module
|
Item |
Parameter |
| |
Model Number |
HX-P3.91-16S |
| |
Module size |
250mm*250mm |
| |
Pixel pitch |
3.91mm |
| |
Pixels Density |
65536 Pixels/m2 |
| |
Pixel configuration |
1R1G1B |
| |
LED Package mode |
SMD1921 |
| |
Pixel resolution |
64dots(W)*64 dots(H) |
| |
Max Power |
38W |
| |
Module weight |
0.7kg |
| |
Drive type |
Constant drive |
| |
Scan mode |
1/16Scan 1/16scan |
| |
Port type |
HUB75-A |
| |
Brightness of white balance |
≥4800cd/m2 |
P3.91 System Connection diagram

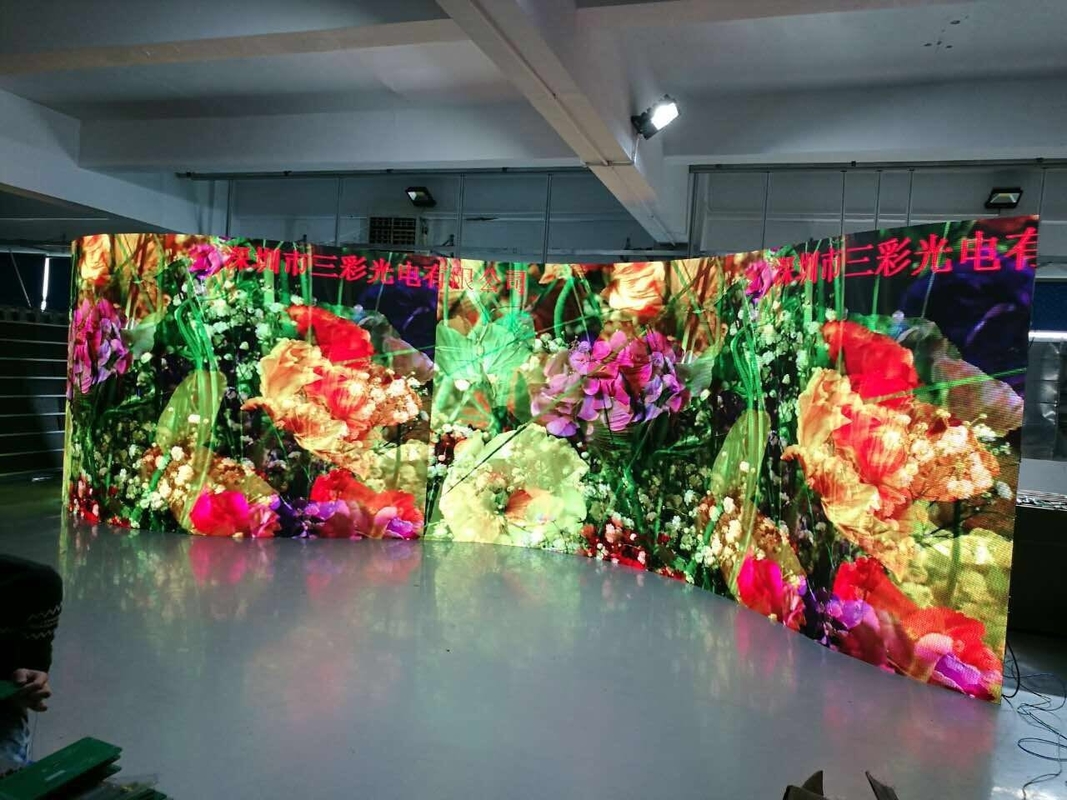

Product Show
