Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Led Display P10 Outdoor IP65, Energy Saving Led Display IP65, IP65  Led Display Energy Saving


Module Size:	480x320mm	Cabinet Size:	960x960mm
Cabinet Weight:	28kg/㎡	Cabinet Material:	Profile Aluminum
LEDs Brand:	Nationstar/Kinglight/Mulinsen/Specificed	Refresh Rate:	3840Hz - 7680Hz
Brightness:	≥6500nits	Max. Power Consumption:	650W/㎡
Ave. Power Consumption:	200W/㎡	Gray Level:	14bits - 16bits
Viewing Distance:	≥5m	Protection Level:	IP65
Operating Voltage:	AC110V/220V±10%

Module Size:	480x320mm
Cabinet Size:	960x960mm
Cabinet Weight:	28kg/㎡
Cabinet Material:	Profile Aluminum
LEDs Brand:	Nationstar/Kinglight/Mulinsen/Specificed
Refresh Rate:	3840Hz - 7680Hz
Brightness:	≥6500nits
Max. Power Consumption:	650W/㎡
Ave. Power Consumption:	200W/㎡
Gray Level:	14bits - 16bits
Viewing Distance:	≥5m
Protection Level:	IP65
Operating Voltage:	AC110V/220V±10%

140° Viewing Angle Energy Saving Led Display P10 Outdoor IP65 960x960mm

P10 Low power consumption 140° Viewing Angle Energy Saving Outdoor Display Screen IP65 960x960mm

Product features:

1. The voltage divider power supply design has an average power consumption of up to 200W and more than 6500nit.

2. High brightness, environmental protection and energy-saving.

3. 140°(H/V) ultra-wide viewing angle; It can be spliced at right angles and arcs, and it is easy to achieve naked-eye 3D.

4. High brim mask design, good ink color consistency, high contrast, up to 9500:1.

5. The colors are rich and delicate; The picture is clear and natural.

6. High-strength anti-aging fabric, IP65 protection level: die-cast aluminum bottom shell, high heat dissipation ribs.

7. The design has good heat dissipation performance and prolongs the service life of the screen.

Product technical specifications:

Item	Parameter
Model	P10
Pixel pitch	10mm
LEDs	SMD2727
Module size	480x320mm
Module resolution	48x32 dots
Cabinet size	960x960x77mm
Cabinet resolution	96x96 dots
Cabinet material	Profile Aluminum
Cabinet weight	28kg
Maintenance methods	Front
Brightness	≥6500 cd/㎡
Refresh rate	3840Hz-7680Hz
Gray level	14bits-16bits
Scan mode	1/2 scan
Viewing angle	140°/140°
Viewing distance	≥5m
Max. power consumption	600W/㎡
Ave. power consumption	200W/㎡
Input signal	DVI, VGA, HDMI, HDSDI
Operating temperature	-20-60℃
Operating humidity	10-90% RH
Operating voltage	AC 110V / 220V ±10%

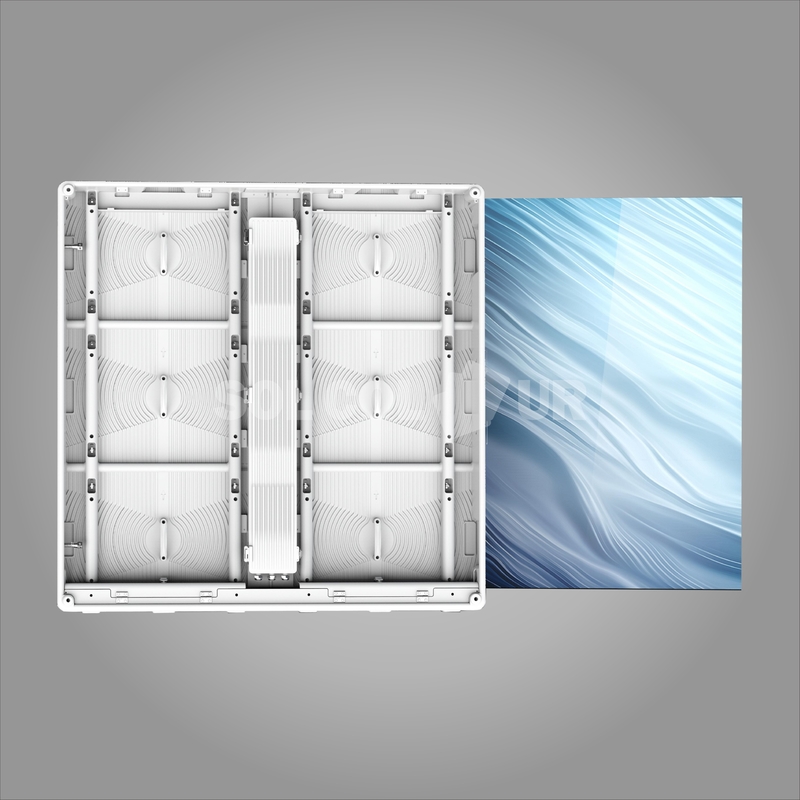

Reference pictures:

140° Viewing Angle Energy Saving Led Display P10 Outdoor IP65 960x960mm 0
