Name: P5.7 Outdoor Energy Saving LED Display 960x960mm Wide Viewing Angle IP65
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P5.7
Price: 1,756.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P5.7

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: Carton box, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                P5.7 Energy Saving LED Display, Energy Saving LED Display  960x960mm, P5.7 Energy Saving LED screen


Module Size:	480x320mm	Cabinet Size:	960x960mm Or Customized
Cabinet Weight:	28kg/㎡	Cabinet Material:	Profile Aluminum
LEDs Brand:	Nationstar/Kinglight/Mulinsen/Specificed	Refresh Rate:	3840Hz - 7680Hz
Brightness:	≥6500nits	Max. Power Consumption:	650W/㎡
Ave. Power Consumption:	220W/㎡	Gray Level:	14bits - 16bits
Viewing Distance:	≥5m	Protection Level:	IP65
Operating Voltage:	AC110V/220V±10%

Module Size:	480x320mm
Cabinet Size:	960x960mm Or Customized
Cabinet Weight:	28kg/㎡
Cabinet Material:	Profile Aluminum
LEDs Brand:	Nationstar/Kinglight/Mulinsen/Specificed
Refresh Rate:	3840Hz - 7680Hz
Brightness:	≥6500nits
Max. Power Consumption:	650W/㎡
Ave. Power Consumption:	220W/㎡
Gray Level:	14bits - 16bits
Viewing Distance:	≥5m
Protection Level:	IP65
Operating Voltage:	AC110V/220V±10%

P5.7 Outdoor Energy Saving LED Display 960x960mm Wide Viewing Angle IP65

P5.7 Low power consumption Energy Saving Outdoor Display Screen 960x960mm Wide Viewing Angle IP65

Product features:

1. The voltage divider power supply design has an average power consumption of up to 220W and more than 6500nit.

2. High brightness, environmental protection and energy-saving.

3. 140°(H/V) ultra-wide viewing angle; It can be spliced at right angles and arcs, and it is easy to achieve naked-eye 3D.

4. High brim mask design, good ink color consistency, high contrast, up to 9500:1.

5. The colors are rich and delicate; The picture is clear and natural.

6. High-strength anti-aging fabric, IP65 protection level: die-cast aluminum bottom shell, high heat dissipation ribs.

7. The design has good heat dissipation performance and prolongs the service life of the screen.

Product technical specifications:

Item	Parameter
Model	P5.7
Pixel pitch	5.71mm
LEDs	SMD2727
Module size	480x320mm
Module resolution	84x56 dots
Cabinet size	960x960x77mm
Cabinet resolution	168x168 dots
Cabinet material	Profile Aluminum
Cabinet weight	28kg
Maintenance methods	Front
Brightness	≥6500 cd/㎡
Refresh rate	3840Hz-7680Hz
Gray level	14bits-16bits
Scan mode	1/7 scan
Viewing angle	140°/140°
Viewing distance	≥5m
Max. power consumption	650W/㎡
Ave. power consumption	220W/㎡
Input signal	DVI, VGA, HDMI, HDSDI
Operating temperature	-20-60℃
Operating humidity	10-90% RH
Operating voltage	AC 110V / 220V ±10%

Reference pictures:

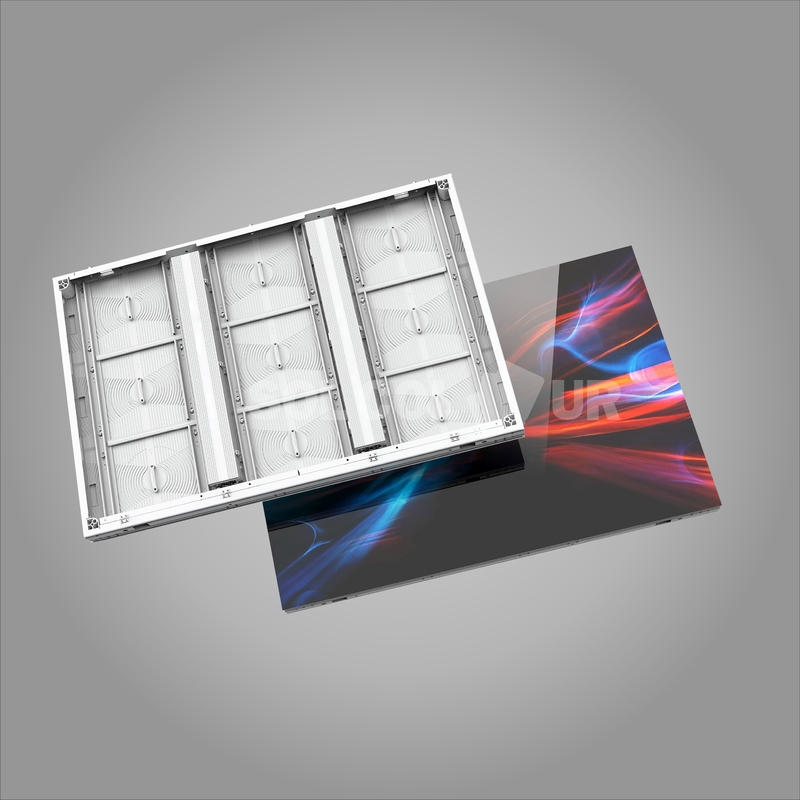

P5.7 Outdoor Energy Saving LED Display 960x960mm Wide Viewing Angle IP65 0
