Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Aluminum Cabinet   P8 Outdoor Led Display, Aluminum Cabinet     Energy Saving Led Screen, SMD2727 P8 Outdoor Led Display


Module Size:	480x320mm	Cabinet Size:	960x960mm
Cabinet Weight:	28kg/㎡	Cabinet Material:	Profile Aluminum
LEDs Brand:	Nationstar/Kinglight/Mulinsen/Specificed	Refresh Rate:	3840Hz - 7680Hz
Brightness:	≥6500nits	Max. Power Consumption:	650W/㎡
Ave. Power Consumption:	220W/㎡	Gray Level:	14bits - 16bits
Viewing Distance:	≥5m	Protection Level:	IP65
Operating Voltage:	AC110V/220V±10%

Module Size:	480x320mm
Cabinet Size:	960x960mm
Cabinet Weight:	28kg/㎡
Cabinet Material:	Profile Aluminum
LEDs Brand:	Nationstar/Kinglight/Mulinsen/Specificed
Refresh Rate:	3840Hz - 7680Hz
Brightness:	≥6500nits
Max. Power Consumption:	650W/㎡
Ave. Power Consumption:	220W/㎡
Gray Level:	14bits - 16bits
Viewing Distance:	≥5m
Protection Level:	IP65
Operating Voltage:	AC110V/220V±10%

SMD2727 P8 Outdoor Led Display Energy Saving Led Screen With Aluminum Cabinet

P8 Low Power Consumption Energy Saving Outdoor Display Screen Profile Aluminum Cabinet 960x960mm

Product features:

1. The voltage divider power supply design has an average power consumption of up to 220W and more than 6500nit.

2. High brightness, environmental protection and energy-saving.

3. 140°(H/V) ultra-wide viewing angle; It can be spliced at right angles and arcs, and it is easy to achieve naked-eye 3D.

4. High brim mask design, good ink color consistency, high contrast, up to 9500:1.

5. The colors are rich and delicate; The picture is clear and natural.

6. High-strength anti-aging fabric, IP65 protection level: die-cast aluminum bottom shell, high heat dissipation ribs.

7. The design has good heat dissipation performance and prolongs the service life of the screen.

Product technical specifications:

Item	Parameter
Model	P8
Pixel pitch	8mm
LEDs	SMD2727
Module size	480x320mm
Module resolution	60x40 dots
Cabinet size	960x960x77mm
Cabinet resolution	120x120 dots
Cabinet material	Profile Aluminum
Cabinet weight	28kg
Maintenance methods	Front
Brightness	≥6500 cd/㎡
Refresh rate	3840Hz-7680Hz
Gray level	14bits-16bits
Scan mode	1/4 scan
Viewing angle	140°/140°
Viewing distance	≥5m
Max. power consumption	650W/㎡
Ave. power consumption	220W/㎡
Input signal	DVI, VGA, HDMI, HDSDI
Operating temperature	-20-60℃
Operating humidity	10-90% RH
Operating voltage	AC 110V / 220V ±10%

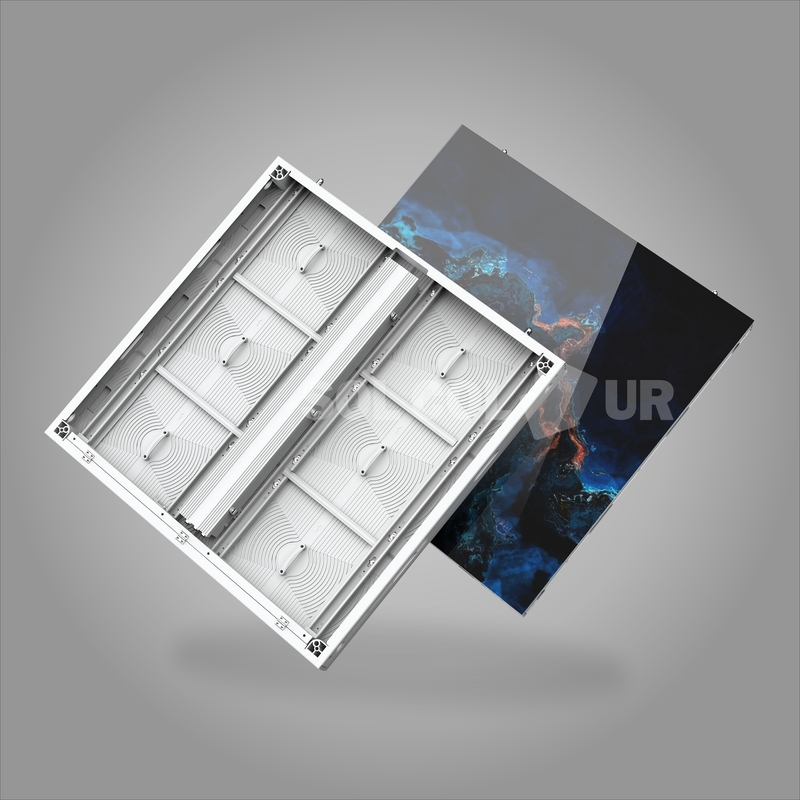

Reference pictures:

SMD2727 P8 Outdoor Led Display Energy Saving Led Screen With Aluminum Cabinet 0
