960x960mm Cabinet Led Energy Saving Display IP65 Led Screen High Contrast

Name: 960x960mm Cabinet Led Energy Saving Display IP65 Led Screen High Contrast
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P5.7/P6.67/P8/P10
Price: 1,756.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P5.7/P6.67/P8/P10

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: Carton box, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Led Energy Saving Display  High Contrast, IP65 Led Screen High Contrast, 960x960mm Led Energy Saving Display


Module Size:	480x320mm	Cabinet Size:	960x960mm
Cabinet Weight:	28kg/㎡	Cabinet Material:	Profile Aluminum
LEDs Brand:	Nationstar/Kinglight/Mulinsen/Specificed	Refresh Rate:	3840Hz - 7680Hz
Brightness:	≥6500nits	Max. Power Consumption:	650W/㎡
Ave. Power Consumption:	200-220W/㎡	Gray Level:	14bits - 16bits
Viewing Distance:	≥5m	Protection Level:	IP65
Operating Voltage:	AC110V/220V±10%

Module Size:	480x320mm
Cabinet Size:	960x960mm
Cabinet Weight:	28kg/㎡
Cabinet Material:	Profile Aluminum
LEDs Brand:	Nationstar/Kinglight/Mulinsen/Specificed
Refresh Rate:	3840Hz - 7680Hz
Brightness:	≥6500nits
Max. Power Consumption:	650W/㎡
Ave. Power Consumption:	200-220W/㎡
Gray Level:	14bits - 16bits
Viewing Distance:	≥5m
Protection Level:	IP65
Operating Voltage:	AC110V/220V±10%

960x960mm Cabinet Led Energy Saving Display IP65 Led Screen High Contrast

Low power consumption Energy Saving Outdoor Display Screen 960x960mm Profile Aluminum Cabinet

Product features:

1. The voltage divider power supply design has an average power consumption of up to 200W and more than 6500nit.

2. High brightness, environmental protection and energy-saving.

3. 140°(H/V) ultra-wide viewing angle; It can be spliced at right angles and arcs, and it is easy to achieve naked-eye 3D.

4. High brim mask design, good ink color consistency, high contrast, up to 9500:1.

5. The colors are rich and delicate; The picture is clear and natural.

6. High-strength anti-aging fabric, IP65 protection level: die-cast aluminum bottom shell, high heat dissipation ribs.

7. The design has good heat dissipation performance and prolongs the service life of the screen.

Product technical specifications:

Parameter
Model	P5.7	P6.67	P8	P10
Pixel pitch	5.71mm	6.67mm	8mm	10mm
LEDs	SMD2727	SMD2727	SMD2727	SMD2727
Module size	480x320mm
Module resolution	84x56 dots	72x48 dots	60x40 dots	48x32 dots
Cabinet size	960x960x77mm
Cabinet resolution	168x168 dots	144x144 dots	120x120 dots	96x96 dots
Cabinet material	Profile Aluminum
Cabinet weight	28kg
Maintenance methods	Front
Brightness	≥6500 cd/㎡	≥6500 cd/㎡	≥6500 cd/㎡	≥6500 cd/㎡
Refresh rate	3840Hz-7680Hz	3840Hz-7680Hz	3840Hz-7680Hz	3840Hz-7680Hz
Gray level	14bits-16bits	14bits-16bits	14bits-16bits	14bits-16bits
Scan mode	1/7 scan	1/6 scan	1/4 scan	1/2 scan
Viewing angle	140°/140°
Viewing distance	≥5m
Max. power consumption	650W/㎡	650W/㎡	650W/㎡	600W/㎡
Ave. power consumption	220W/㎡	220W/㎡	220W/㎡	200W/㎡
Input signal	DVI, VGA, HDMI, HDSDI
Operating temperature	-20-60℃
Operating humidity	10-90% RH
Operating voltage	AC 110V / 220V ±10%

Reference pictures:

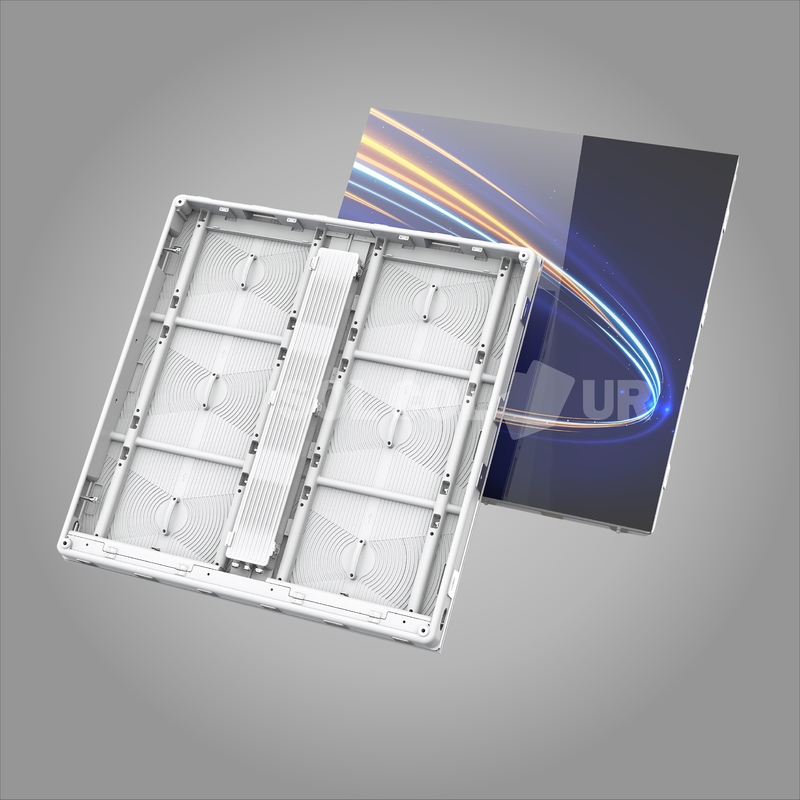

960x960mm Cabinet Led Energy Saving Display IP65 Led Screen High Contrast 0
