SMD3535 Circular Led Display Bendable Led Screen Dustproof Anti Corrosion

Name: SMD3535 Circular Led Display Bendable Led Screen Dustproof Anti Corrosion
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: Outdoor SMDP10
Price: 1,249.43 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN CHINA

Brand Name: SC

Certification: CCC IP68 CE ISO9001 ROSH

Model Number: Outdoor SMDP10

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: Square Meters / 1 Piece

Price: Negotiable

Packaging Details: Wooden box,Flight Case

Delivery Time: 10 days after received deposit

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                SMD3535 Circular Led Display, SMD3535   Bendable Led Screen, Circular Led Display  Anti Corrosion


Pixel Pitch:	10mm	Encapsulation Of Led:	SMD3535
Diameter:	≤800mm	Pixel Density:	1000dots/㎡
Module Size:	320mm*40mm	Brightness Of White Balance:	≥7000~7500cd/㎡
Average Power Consumption:	350-400W/㎡	Refresh Frequency:	≥1000Hz

Pixel Pitch:	10mm
Encapsulation Of Led:	SMD3535
Diameter:	≤800mm
Pixel Density:	1000dots/㎡
Module Size:	320mm*40mm
Brightness Of White Balance:	≥7000~7500cd/㎡
Average Power Consumption:	350-400W/㎡
Refresh Frequency:	≥1000Hz

SMD3535 Circular Led Display Bendable Led Screen Dustproof Anti Corrosion

1000 Dot /㎡ Clear Vivid Image Circular Led Display SMD3535 7000~7500mcd Brightnesss

Product Features:

Protection level is IP65, is full waterproof, dustproof, anti-corrosion and anti-ultraviolet, enable themselves to work in all weather conditions to guarantee durability, reliability and steady.
High brightness ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.
High resolution could guarantee superior performance even with small screen size.
High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
Super wide viewing angle can be visible in most corners, give you visual enjoyment.
SMD technology could guarantee higher flatness and better performance.
Aviation plug and quick lock is used, bringing easier cables connection and quicker assembly of cabinets to save time.
Low power consumption and fast heat dissipation with dual channel heat dissipation
Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans’ speed monitoring, three-way voltage monitoring and temperature monitoring etc.
Widely used in outdoor advertising, toll gate, supermarket, shopping mall, sport game et

Specification

Technology parameters	Item	P5	P10
	Model Number	Alien-S5	Alien-S10
	pixel pitch	5mm	10mm
	encapsulation of led	SMD2727	SMD3535
	cabinet material	iron	iron
	protection level	IP 51	IP 65
	diameter	≤800mm	≤800mm
	pixel configuration	1R1G1B	1R1G1B
	pixel density	4000dots/㎡	1000dots/㎡
	driving mode	1/8 scan	1/2 scan
	module size	320mm*40mm	320mm*40mm
	Weight of a mudule	0.9±0.5kgs	0.9±0.5kgs
	brightness of white balance	≥5000-5500cd/㎡	≥7000~7500cd/㎡
	pixel per cabinet	960x960mm	960x960mm
	The best viewing distance	5M~10M	8M~14M
	The best viewing angle	H:120° / W:140°	H:120° / W:140°
	Operating humidity	10-90% Relative humidity	10-90% Relative humidity
	Average Power consumption	350-400W/㎡	350-400W/㎡
	Max.Power consumption	1200W/㎡	1000W/㎡
	Refresh frequency	≥1200Hz	≥1000Hz
	Grey scale/colors	14-16bit	14-16bit
	Driving device	Constant drive IC	Constant drive IC

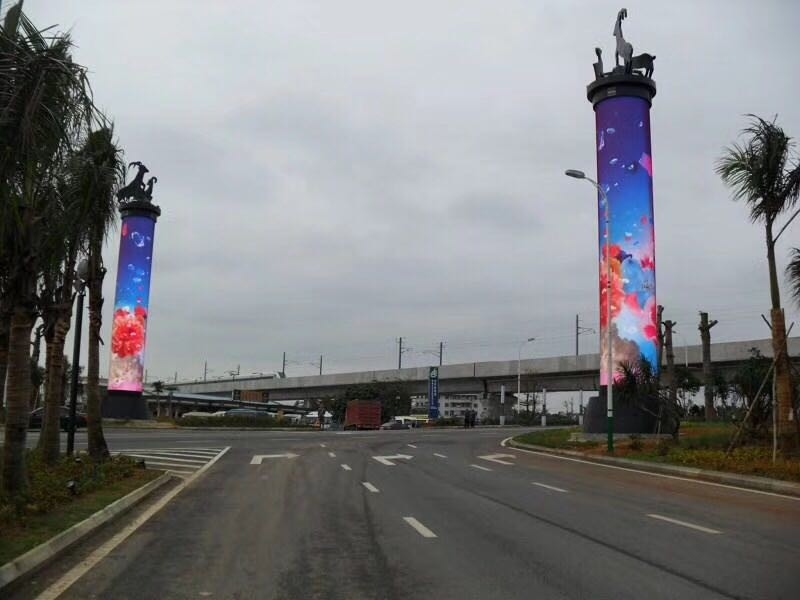

Project Case:

SMD3535 Circular Led Display Bendable Led Screen Dustproof Anti Corrosion 0

Our factory:

Company introduction

Founded by Dec.of 2012, ShenZhen Sol Colur Display Co.,Ltd. is a leading professional outdoor energy saving display manufacturer and solution supplier,We dedicate to provide OEM/ODM for domestic and overseas customers and high quality, high character outdoor energy saving display and solution for distributers and end users.

Our production line includes direct insertion and SMD, which fully meet different pixel pitch, sight distance, brightness and environment for outdoor applicaition. We have perfect R&D, production andy quality management system. The are CCC , FCC, CE , IAF and RoHS etc. international standard certification with our products, and also inspection reports as well as patents.

Till now, our market network goes through all China mainland , and export to more than 10 countries and areas, wins high recognition from customers .

We are honored as one of the best 10 project brands , 10 distribution brands , and famous brand in China, Chinese environment friendly brand etc.
