P10 360 Degree Led Display Circular Led Screen Floor Standing Anti Ultraviolet

Name: P10 360 Degree Led Display Circular Led Screen Floor Standing Anti Ultraviolet
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P10 Cylindrical Screen
Price: 1,249.43 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN

Brand Name: SC

Certification: CE.3C,FCC ,ROSH,ISO9001

Model Number: P10 Cylindrical Screen

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Square Meters / 1 Piece

Price: Negotiable

Packaging Details: Wooden box,Flight Case

Delivery Time: 10 days after received deposit

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                P10 360 Degree Led Display, 360 Degree Led Display Anti Ultraviolet, Circular Led Screen Anti Ultraviolet


Encapsulation Of Led:	SMD3535	Protection Level:	IP 65
Pixel Density:	1000dots/㎡	Brightness Of White Balance:	≥7000~7500cd/㎡
Average Power Consumption:	350-400W/㎡	Max.Power Consumption:	1000W/㎡
Power Supply:	5V/40A*6 Pcs	MTBF:	≥9000hours

Encapsulation Of Led:	SMD3535
Protection Level:	IP 65
Pixel Density:	1000dots/㎡
Brightness Of White Balance:	≥7000~7500cd/㎡
Average Power Consumption:	350-400W/㎡
Max.Power Consumption:	1000W/㎡
Power Supply:	5V/40A*6 Pcs
MTBF:	≥9000hours

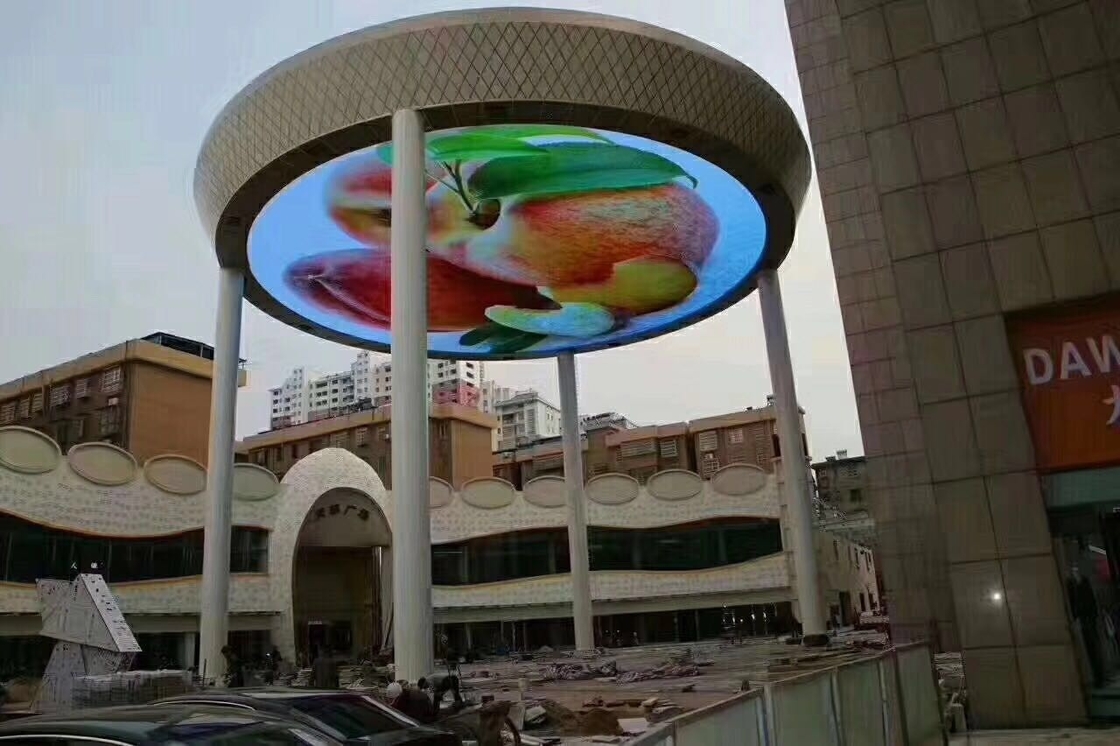

P10 360 Degree Led Display Circular Led Screen Floor Standing Anti Ultraviolet

P10 Creative 360 Degree Circular Led Display Floor Standing Anti - Ultraviolet

Product Features:

1, Installation: stand on ground or mobile using.

2, Viewing angle:Perfect viewing angle with 360 degree.

3, Controlling:Both synchronous and asynchronous control way is available for LED balls.

5, Effect:The creative appearance and wonderful showing effect attracts most attention during the usage.

Parameter

Unit Module	Item	Parameter
	Model Number	SF-SS5-8-Y
	Module size	40mm*320mm
	Pixel pitch	5mm
	Pixels Density	40000Pixels /m2
	Pixel configuration	1R1G1B
	LED Package mode	NationstarSMD2727
	Pixel resolution	8dots(W)*64dots(H)
	Max Power	14W
	Module thickness	22mm
	Module Weight	0.37kg
	Drive type	Constant drive
	Scan mode	1/8
	Port type	HUB75-A
	Brightness of white balance	≥5500～6000cd/m2
Module pictures
LED Cabinet	Dimension	960mm960mm100 mm
	Monomer Module Number	72pcs
	Power supply	5V/40A*6 pcs
	Thermal discharge	fan 2pcs
	Pixel per cabinet	192mm*192mm
	Best viewing distance	5M～15M
	Best viewing angle	120°(W) 110°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Relative humidity	10%-95%
	Thickness	122mm
Power	Working voltage	AC220V±10%
	Average Power consumption	1200W/㎡
	Max.Power consumption	≤350W/㎡
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above P4
	Operation system	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	≥1200HZ
	Grey scale/colors	4096,16.7M Color 4096gray level/16.7M colors
	MTBF	≥9000hours
	Power switch	Automatic switch
	Display Mode	≥800600/1024768

P3.91 System Connection diagram
