Outdoor Flexible LED Display Screen Modularization Design 40*320mm Module

Name: Outdoor Flexible LED Display Screen Modularization Design 40*320mm Module
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P10 Outdoor
Price: 1,249.43 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN

Brand Name: SC

Certification: CE.3C,FCC,ROSH,ISO9001

Model Number: P10 Outdoor

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Square Meters

Price: Negotiable

Packaging Details: Wooden box,Flight Case and carton

Delivery Time: 10 days after received deposit

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Modularization Flexible LED Display Screen, Modularization bendable led screen, 40*320mm Module  Flexible LED Display


Module Size:	40*320mm	Brightness:	≥6500cd/m2
Warranty:	2 Years	Certificate:	CE,3C,FCC
Uasge:	Outdoor	Place Of Origin:	Shenzhen China
Power Supply:	Meanwell	Pixel Density:	10000dots/m2
Module Resolution:	4dots(W)*32dots(H)	Module Thickness:	3.5CM

Module Size:	40*320mm
Brightness:	≥6500cd/m2
Warranty:	2 Years
Certificate:	CE,3C,FCC
Uasge:	Outdoor
Place Of Origin:	Shenzhen China
Power Supply:	Meanwell
Pixel Density:	10000dots/m2
Module Resolution:	4dots(W)*32dots(H)
Module Thickness:	3.5CM

Outdoor Flexible LED Display Screen Modularization Design 40*320mm Module

Super Thin Flexible Led Video Wall , 360°Round Flexible Video Screen For Government Project

Description

360°round,For government project,Hotel project
1. bendable, it can be assembled at any uneven or irregular locations.

2. Super thin
Flexible LED Sign is one of the thinnest &lightest LED signs in the world with special materials and advanced technology. Every module is weight of 800g.

3. Easy to splice, install and maintain
Modularization design and no other connected cables make the installation so easy.User just mounts iron sheet or magnetic product on the surface in the first,then stick the Flexible LED sign on the surface .

4. Low power consumption
The maximal power consumption of a module is less than 12W

5. Wide application
Can be used in so many fields and occasions ,especially in all kinds of irregular buildings . For example hotel advertising,stage renting,television,shopping

Product Features:

A, Used for restaurants, hotels, bar, shopping malls, different stores etc.

B, Controlling:asynchronous control

C, Effect:The creative appearance and wonderful showing effect attracts most attention during the usage.

Modules	Items	Parameter
	Product Model	P10mm
	Module size	40mm*320mm
	Pixel pitch	10mm
	Pixel density	10000dots/m2
	Pixel configuration	1R1G1B
	Module resolution	4dots(W)*32dots(H)
	Module maximum power consumption	13W
	Module Thickness	3.5CM
	Module Weight	0.3kg
	Driving method	Constant Current Driving
	Scanning method	1/4
	Interface	HUB10
	Brightness	≥6500cd/m2

LED cabinet	Cabinet size	64mm96mm
	Module quantity	48
	Power supply	5V/40A 5V/60A
	Cabinet resolution	64*96
	Optimal viewing distance	5M～50M
	Optimal viewing angle	160°(W) 120°(H)
	RHWorking temperature	In stock :-35℃～+85℃ Working :-20℃～+50℃
	System operating humility	10%-95%

Power supplier	Operating Voltage:	AC220V±10%
	Average power consumption	350W/H
	Maximum power consumption	≤600W/㎡
	Electric current	≤20mA(single LED)
Control system	Control Panels	Pentium4 or above P4 Or above
	Control system	WIN98/2000/NT/XP
	Control model	Synchronization control
main technical parameters	Driving device	IC Constant Current Driving
	Refresh rate	≥600HZ
	Grey scale	RGB Each 256, can display 16.7M colors)
	MTBF	≥9000hours
	Power switch	Automatic Switch
	Display Mode	800600/1024768/1280*900

Warranty:

2 years quality guaranteed, necessary design drawing and user manual step by step will be offered to you.

Product Pictures

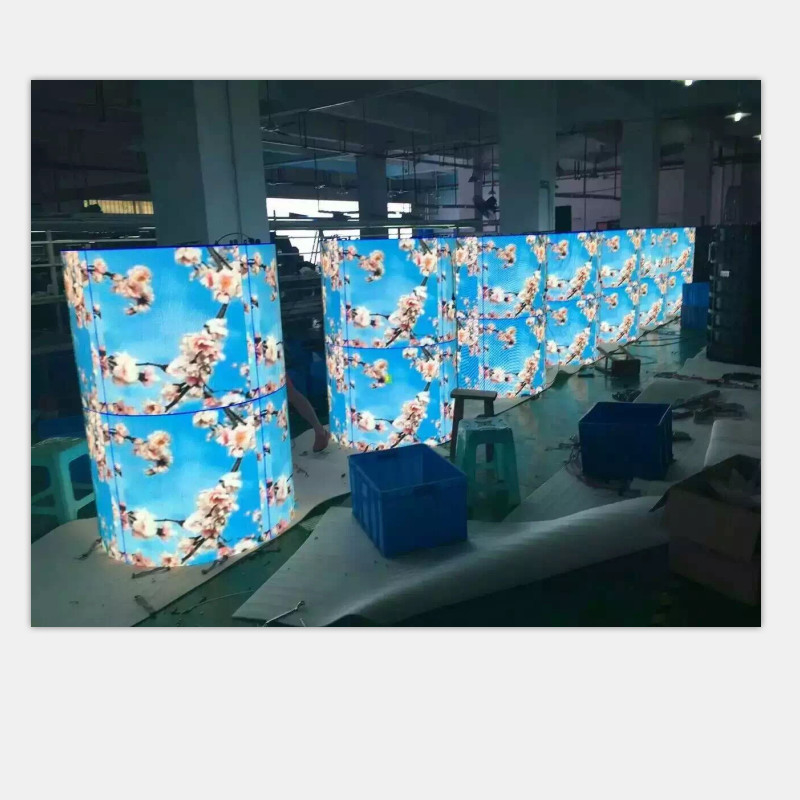

Outdoor Flexible LED Display Screen Modularization Design 40*320mm Module 0
