SMD2121 4K Led Video Wall Fixed Led Screen P3 Indoor High Resolution

Name: SMD2121 4K Led Video Wall Fixed Led Screen P3 Indoor High Resolution
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P3 Indoor
Price: 15.30 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN

Brand Name: SC

Certification: CE.3C,FCC,ROSH,ISO9001

Model Number: P3 Indoor

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Square Meters

Price: USD14.3~17.67/PCS

Packaging Details: Wooden case,flight case and carton case

Delivery Time: 10 days after received deposit

Payment Terms: D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                SMD2121 4K Led Video Wall, Led Screen P3 Indoor High Resolution, SMD2121  Led Screen P3 Indoor


Color::	Full Color	Uasge::	Indoor
Package Mode::	SMD Nationstar	Physical Density::	111111/m2
Driver IC::	MBI5124	Pixel Configuration::	1R1G1B

Color::	Full Color
Uasge::	Indoor
Package Mode::	SMD Nationstar
Physical Density::	111111/m2
Driver IC::	MBI5124
Pixel Configuration::	1R1G1B

SMD2121 4K Led Video Wall Fixed Led Screen P3 Indoor High Resolution

Fixed 4K HD Indoor Full Color LED Display P3 Die - Cast Aluminum For Sports / Stadium

Product Features:

1, Pixel density is 111111 dots per square meter, high resolution brings HD visual effect.

2, Adopts black SMD2121, higher contrast ratio, the display effect is very good.

3, IC MBI5124 is used, high refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.

4, Die-cast aluminum with CNC is finished, the dimension tolerance of less than 0.01mm, and module shaping one time, the machining accuracy of + 0.01mm, easy to realize seamless splicing.

5, There are three handles for lifting cabinets, aviation plug and fast lock on each side is equipped, makes very convenient and comfortable for fast installation by one person without tools, besides guarantee seamless installation and keep smoothly

Application:
Widely used in stage, concert, live on TV, wedding, conference and commercial advertising etc.

Description

Simple cabinet,cabient size 960mmx960mm,module size 320mm*320mm,mininum viewing distance 10m,special for sports and stadium showing events showing, Made in China

Technical specification

※Specifications of the module
Technical parameters		UNIT	Parameters values
Pixel pitch		MM	3
Panel size		MM	L192H96T13
Physical density		/M²	111111
Pixel configuration		R/G/B	1,1,1
Driving method			Constant current 1/16scan
LED Encapsulation		SMD	2121
Display resolution)		DOTS	64X32=2048
Module weight		KG	0.18
Module port			HUB75-B
Module working voltage		VDC	5
Module consumption		W	30
※Specifications of LED cabinet
Viewing angle	Deg.		140°
Option distance	M		3-45
Driving device			16016
Every square metre module	PCS		54.25
Maximum power	W/ M²		900
Frame Frequency	HZ/S		≥60
Refresh frequency	HZ/S		≥320
Equilibrium brightness	CD/ M²		≥1200
Working environment temperature	⁰C		-10~60
Working environment humidity	RH		10%～70%
Display working voltage	VAC		AC46～54HZ,220V±15%/110V±15%
Colour temperature			8500K-11500K
Gray scale/color			≥16.7M color
Input signal			RF S-Video RGB etc
Control system			PCTV nonlinearity card,DVI display card,Linsn control system
Mean free error time	HOURS		＞5000
Life	HOURS		100000
Lamp failure frequency			＜0.0001
Antijam			IEC801
Safety			GB4793
Resist the electricity			1500V last 1min No breakdown
Steel box weight	KG/ M²		40(standard steel box)
Earth leakage current	mA
IP rating			The back IP40,The front IP50

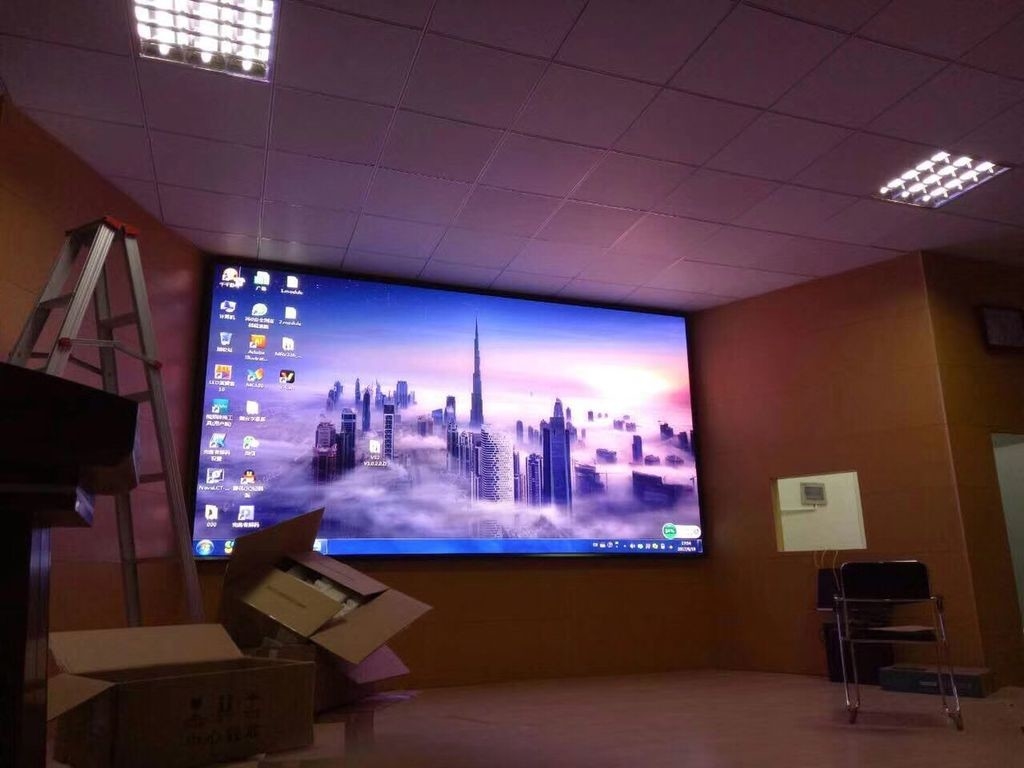

Project Cases

SMD2121 4K Led Video Wall Fixed Led Screen P3 Indoor High Resolution 0

SMD2121 4K Led Video Wall Fixed Led Screen P3 Indoor High Resolution 1
Instation:

Our factory:

Company information
SHENZHEN SOL COLUR DISPLAY CO.,LTD. was established in December 2012,Is a leading LED display applications products and solutions provider,Specialized in LED research and development, manufacturing. Sales and servic,Dedicated to providing high-quality, high-performance LED applications and solutions for professional channel customers and end-users at home and abroad.

Our products have been widely used both at home and abroad. Since its foundation, we have become one of the best LED product and solution providers in the country through our unremitting efforts and have won the industry's highest recognition

The development of the company so far, the sales outlets throughout the country, the export products exported to more than 10 countries and regions, 3C, FCC, CE.IFA, IP65, IP68, IS9001, ROSH.AAA and other qualifications, product testing reports, patent certificate
