High Flatness Commercial Led Video Wall SMD P2 Led Screen Dust Proof

Name: High Flatness Commercial Led Video Wall SMD P2 Led Screen Dust Proof
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: SMDP2
Price: 20.30 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN CHINA

Brand Name: SC

Certification: CCC IP68 CE ISO9001 ROSH

Model Number: SMDP2

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: Square Meters / 1 Piece

Price: Negotiable

Packaging Details: Wooden box,Flight Case

Delivery Time: 10 days after received deposit

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                P2 Led Screen Dust Proof, High Flatness Commercial Led Video Wall, Dust Proof  Commercial Led Video Wall


Best Viewing Angle:	2m~10	Pixel Pitch:	2mm
Control Method:	Synchronization	Color:	Full COLOR
Pixel Number:	Indoor P2	Module Size:	256*256mm
Pixel Density:	250000dots/sqm	Weight:	1.5kg
Cabinet Dimension:	512*512mm

Best Viewing Angle:	2m~10
Pixel Pitch:	2mm
Control Method:	Synchronization
Color:	Full COLOR
Pixel Number:	Indoor P2
Module Size:	256*256mm
Pixel Density:	250000dots/sqm
Weight:	1.5kg
Cabinet Dimension:	512*512mm

High Flatness Commercial Led Video Wall SMD P2 Led Screen Dust Proof

High Resolution RGB LED Panel Screen Indoor Full Color P2 LED Pixel Display

ndoor Led Display Screen Display Features:

1. High flatness, large viewing angle get very good performance and effect indoor

2. High definition screen, well suitable for monitoring and video conference

3. Quick response, no need to worry about time delay

4. Cushion under the cabinet can protect the modules from being damaged

5. Signal & power aviation connectors are water & dust proof, stable and reliable

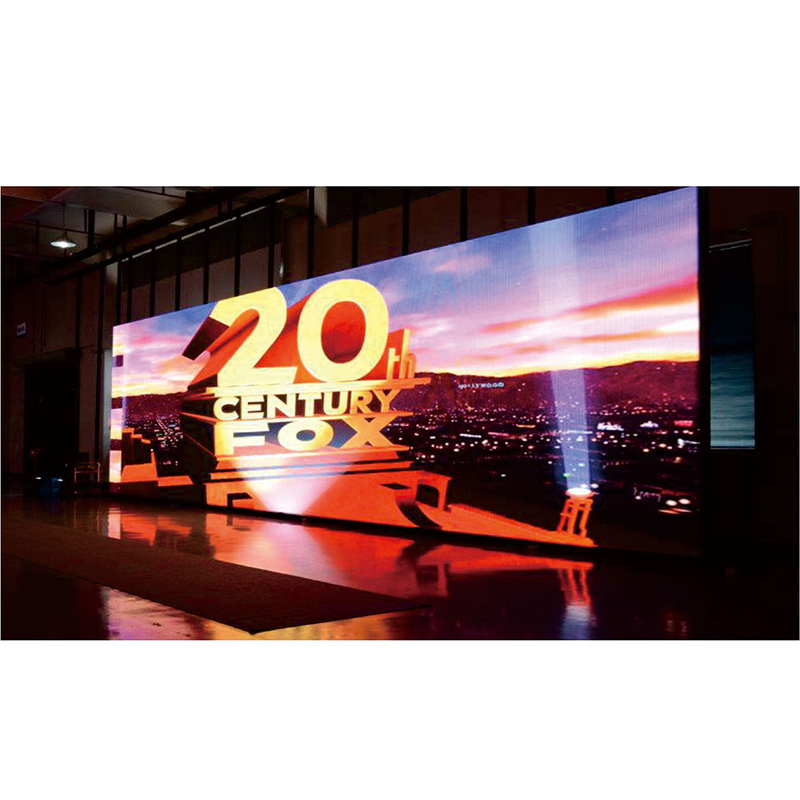

Indoor Led Display Screen Applications:

concerning public information release platform, traffic monitoring and scheduling, military command authorities, video conference system, television studio, senior shopping mall......

General Information:

Model No.	E2-I	Description	HD LED Video Billboard
Pitch	2MM	Pixel Density	250000 pixels/sq.m
Pixel Configuration	1R1G1B	Pixel Type	SMD1010, Black LED

Module Information:

Module Size

200*300mm

Module Resolution

100*150 pixels

Cabinet Information:

Module Component	W:2*H:1pcs=2pcs
Cabinet Size	400*300mm
Cabinet Resolution	200*150 pixels
Cabient Material	Die-cast Aluminum
Service Access	Front

Product Parameter:

ITEM	SPECIFICATION
Drive Mode	1/30 scan, constant current
IC	MBI5153
Refresh Rate	3840Hz
Brightness	800CD/SQ.M(adjustable)
Frame Frequency	50&60Hz
Grey Scale Level	65536(adjustable)
Color Processing Level	16 bit
Color Temperature	3200~9300K(adjustable)
Contrast Ratio	4000:1
Video playback capabilities	2KHD,4KHD
Viewing Angle	160°(Horizontal),160°(Vertical)
Brightness / chromaticity uniformity	≥97%
Best Viewing Distance	2~50m
Power Consumption (Max)	800W/M²
Power Consumption (Avg)	250W/M²
Voltage	AC 100V~240V, 50/60 Hz
Control System	Synchronous/Asynchronous Control System
