P1.667 Small Pixel Pitch Led Display 20W Max Power 2 Years Warranty

Name: P1.667 Small Pixel Pitch Led Display 20W Max Power 2 Years Warranty
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P1.667
Price: 20.30 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN CHINA

Brand Name: Sol Colur

Certification: IP65、3C、Rosh

Model Number: P1.667

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1pieces

Price: Negotiable

Packaging Details: Flight Case , Wooden Box , Carton

Delivery Time: 5000 Square Meters/ per momth

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                P1.667 Small Pixel Pitch Led Display, P1.667 small pixel pitch led screen, Small Pixel Pitch Led Display  20W


P1.667 Small Pixel Pitch Led Display 20W Max Power 2 Years Warranty

Small Pixel Pitch Indoor Full Color LED Display 20W Max Power 2 Years Warranty

Product Name:	P1.667	Module Size:	200*150mm
Pixel Pitch:	1.667mm	Max Power:	20W
Thickness:	55mm

High quality 200*150mm P1.25 P1.5625 P1.667 small pixel pitch led display
Detailed Product Description:

Module size: 200*150mm Thickness: 55mm
Control Method: Synchronization Color: 1R1GB
Module number: Indoor P1.667 Package mode: NationstarSMD1010
Warranty: 2 Years Pixel resolution: 64dots(W)*64dots(H)

Product Parameters:

Unit Module	Item	Parameter
	Model Number	SF-TS1.667-30S-A
	Module size	200mm*150mm
	Pixel pitch	1.667mm
	Pixels Density	360000dots/m2
	Pixel configuration	1R1G1B
	Package mode	NationstarSMD1010
	Pixel resolution	64dots(W)*64dots(H)
	Max Power consumpion	20W
	Module thickness	22mm
	Weight	0.4kg
	Drive type	Constant drive
	Scan mode	30S
	Port type	HUB75-A
	Brightness of white balance	≥1000cd/m2

Cabinet	Dimension	400mm*300mm
	Monomer Module Number	6pcs
	Power supply	5V/40A*1pcs
	Thermal discharge	fan1pcs
	Pixel per cabinet	120*90mm
	Best viewing distance	1.7M～10M
	Best viewing distance	140°(W) 140°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Relative humidity	10%-95%
	Thickness	55mm

Power	Working voltage	AC220V±10%
	Average Power consumption	300W/H
	Max.Power consumption	≤1000W/㎡
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above P4 or more
	Operation system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	Constant currentdriver IC
	Refresh frequency	≥1920HZ
	Grey scale/colors	gray4096 levels of each color(RGB)/16.7M colors
	MTBF	≥100000hours
	Power switch	Automatic switch

Advantage:

1. High pixel, fine and vivid image quality, pure and bright colors
2. Wide visual angle display technology and have high refresh.
3. We provides 2 years of warranty and have good after-sales service
4. Dampproof and inflaming retarding design, safe and reliable, long service life
5. Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal

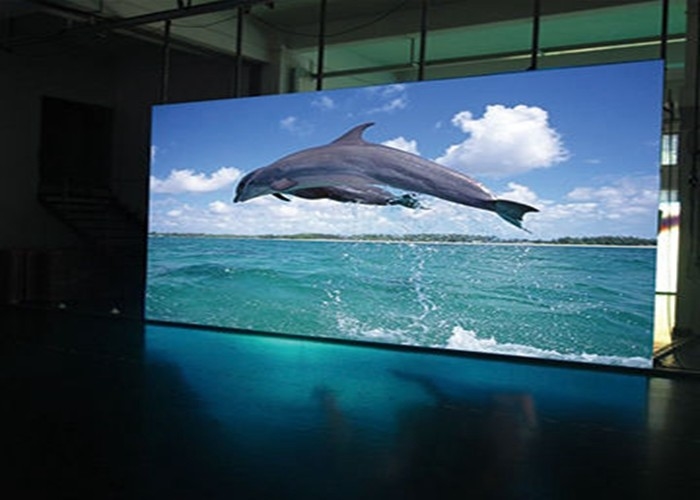

Project Show:

Led screen system connection

P1.667 Small Pixel Pitch Led Display 20W Max Power 2 Years Warranty 1

Company information
SHENZHEN SOL COLUR DISPLAY CO.,LTD. was established in December 2012,Is a leading LED display applications products and solutions provider,Specialized in LED research and development, manufacturing. Sales and servic,Dedicated to providing high-quality, high-performance LED applications and solutions for professional channel customers and end-users at home and abroad.
Our products have been widely used both at home and abroad. Since its foundation, we have become one of the best LED product and solution providers in the country through our unremitting efforts and have won the industry's highest recognition
The development of the company so far, the sales outlets throughout the country, the export products exported to more than 10 countries and regions, 3C, FCC, CE.IFA, IP65, IP68, IS9001, ROSH.AAA and other qualifications, product testing reports, patent certificate
