Product Details
Place of Origin: China
Brand Name: Sol-colur
Certification: CE/FCC/ROHS/ISO
Model Number: P1.25/P1.5/P1.8/P2
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Carton box, Wooden case
Delivery Time: 10 working days after receiving deposit
Payment Terms: L/C, T/T
Supply Ability: 5000sqm/month
|
Module Size:
|
320x160mm
|
Cabinet Size:
|
640x480mm
|
Cabinet Material:
|
Die Casting Aluminum
|
Cabinet Weight:
|
4.2kg
|
LEDs Brand:
|
Nationstar/Kinglight/Ruisheng/Mulinsen/Specificed
|
Refresh Rate:
|
3840Hz-7680Hz
|
Gray Level:
|
14bit - 16bit
|
Brightness:
|
450-500cd/㎡
|
Maintenance:
|
Front
|
Environment:
|
Indoor
|
Max. Power Consumption:
|
390W/㎡
|
Ave. Power Consumption:
|
130W/㎡
|
Operating Voltage:
|
AC 110V /220V ± 10%
|
|
Module Size:
|
320x160mm
|
|
Cabinet Size:
|
640x480mm
|
|
Cabinet Material:
|
Die Casting Aluminum
|
|
Cabinet Weight:
|
4.2kg
|
|
LEDs Brand:
|
Nationstar/Kinglight/Ruisheng/Mulinsen/Specificed
|
|
Refresh Rate:
|
3840Hz-7680Hz
|
|
Gray Level:
|
14bit - 16bit
|
|
Brightness:
|
450-500cd/㎡
|
|
Maintenance:
|
Front
|
|
Environment:
|
Indoor
|
|
Max. Power Consumption:
|
390W/㎡
|
|
Ave. Power Consumption:
|
130W/㎡
|
|
Operating Voltage:
|
AC 110V /220V ± 10%
|
1. Die-cast aluminum cabinet design, ultra-light and ultra-thin.
2. High-precision intelligent module, seamless splicing of the large screen.
3. Ultra-high contrast, high definition (support HDR high dynamic display effect).
4. Wide range of applications, such as control rooms, monitoring rooms, high-end commercial displays, studios, etc.
Product technical specifications:
| Parameter | ||||
| Model | P1.25 | P1.5 | P1.8 | P2 |
| Pixel pitch | 1.25mm | 1.5mm | 1.8mm | 2mm |
| LEDs | SMD1010 | SMD1212 | SMD1515 | SMD1515 |
| Cabinet size | 640x480x48nn | |||
| Cabinet material | Die Casting Aluminum | |||
| Cabinet weight | 4.2kg | |||
| Maintenance methods | Front | |||
| Module size | 320x160mm | |||
| Module resolution | 256x128 dots | 208x104 dots | 172x86 dots | 160x80 dots |
| Screen resolution | 64000 dots/㎡ | 422500 dots/㎡ | 288906 dots/㎡ | 250000 dots/㎡ |
| Brightness | ≥450 cd/㎡ | ≥450 cd/㎡ | ≥450 cd/㎡ | ≥500 cd/㎡ |
| Viewing angle | 150°/130° | |||
| Max. power consumption | 390W/㎡ | 390W/㎡ | 390W/㎡ | 390W/㎡ |
| Ave. power consumption | 130W/㎡ | 130W/㎡ | 130W/㎡ | 130W/㎡ |
| Refresh rate | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz |
| Gray level | 14bits-16bits | 14bits-16bits | 14bits-16bits | 14bits-16bits |

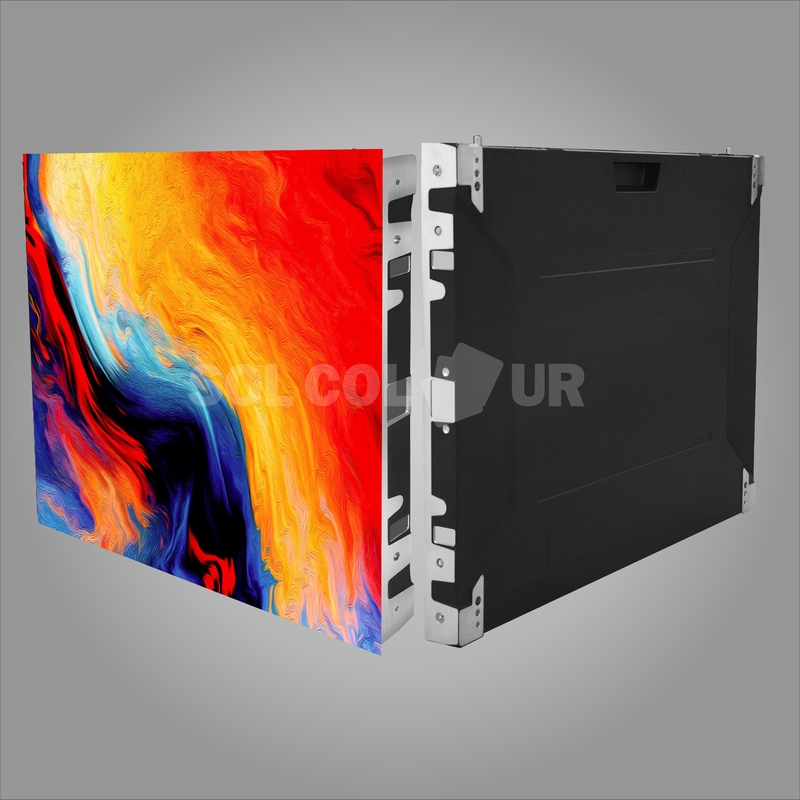

Reference pictures:
