Highlight:
                                                                                                                                                                                                                                                                                                                                                                                SMD3535 Outdoor LED Display Module, Outdoor LED Display Module Dustproof, P10   LED Display Module  Dustproof


LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified	Refresh Rate:	1920Hz-7680Hz
Protection Level:	IP65	Max. Power Consumption:	≤780w/m²
Ave. Power Consumption:	≤250w/m²	Viewing Angle:	110°
Uasge:	Outdoor	Work Voltage:	AC220V±10%
Maintenance:	Front/Rear	Lifespan:	100000(Hours)

LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified
Refresh Rate:	1920Hz-7680Hz
Protection Level:	IP65
Max. Power Consumption:	≤780w/m²
Ave. Power Consumption:	≤250w/m²
Viewing Angle:	110°
Uasge:	Outdoor
Work Voltage:	AC220V±10%
Maintenance:	Front/Rear
Lifespan:	100000(Hours)

P10 SMD3535 Outdoor LED Display Module IP65 Dustproof Energy Saving

P10 Outdoor Common Cathode Cold Screen LED Display Screen Module IP65

Product features:

1. Original "cold screen" technology, stable and 60% lower than conventional, effectively controls temperature rise, and screen operation is more stable

2. Low power consumption, true energy saving, saving about 70% of electricity, high-efficiency energy-saving driver IC, reducing circuit drive loss and reducing operating costs

3. CNC precision-processed magnesium aluminum cabinet, 22KG/m² lighter than traditional iron cabinet, 8KG/m² lighter than die-cast aluminum cabinet

4. Fully sealed magnesium aluminum cabinet design, waterproof, dustproof, anti-corrosion, flame retardant, anti-ultraviolet protection level up to IP65

Product technical specifications:

Item	Specification
Model	P10
Pitch	10mm
LEDs	SMD3535
Module size	320*160
Scan	2S
Resolution	32X16
Pixel density(dot/m²)	10000
IP rate	IP65
Maintenance	Front/Rear
White balance brightness(cd/m²)	6000～6500
Horizontal viewing angle	110°
Vertical viewing angle	110°
Max. power consumption	≤780W/m²
Ave. power consumption	≤250W/m²
Work voltage	AC220V±10%
Refresh rate	≥1920
Lifespan	100000(Hours)
Operating temperature	-20℃~+65℃
Storage temperature	-35℃~+80℃
Operating humidity	10~90%RH
Storage humidity	10~95%RH

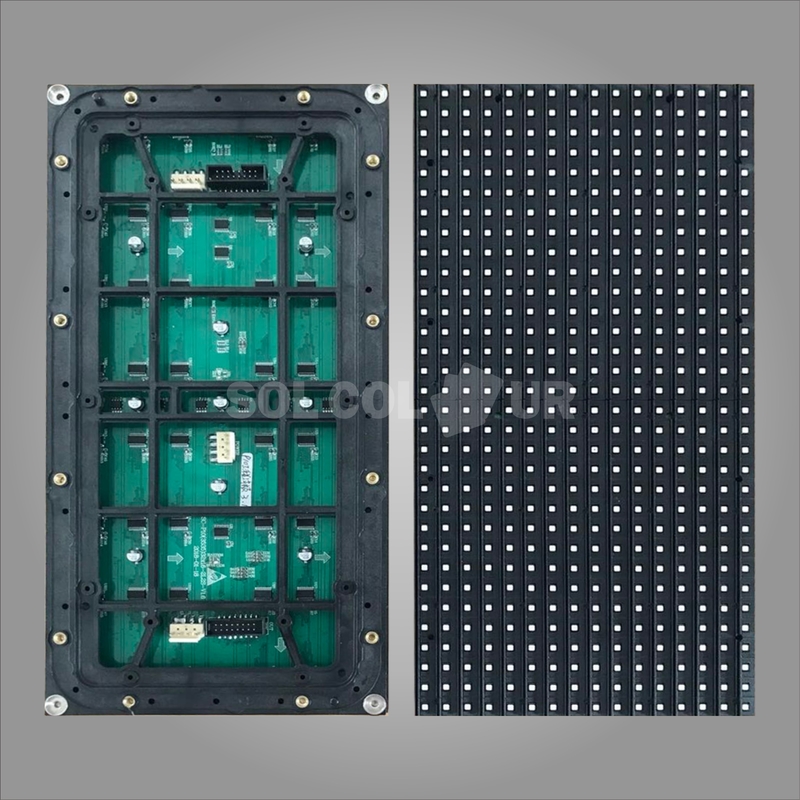

Reference pictures:
