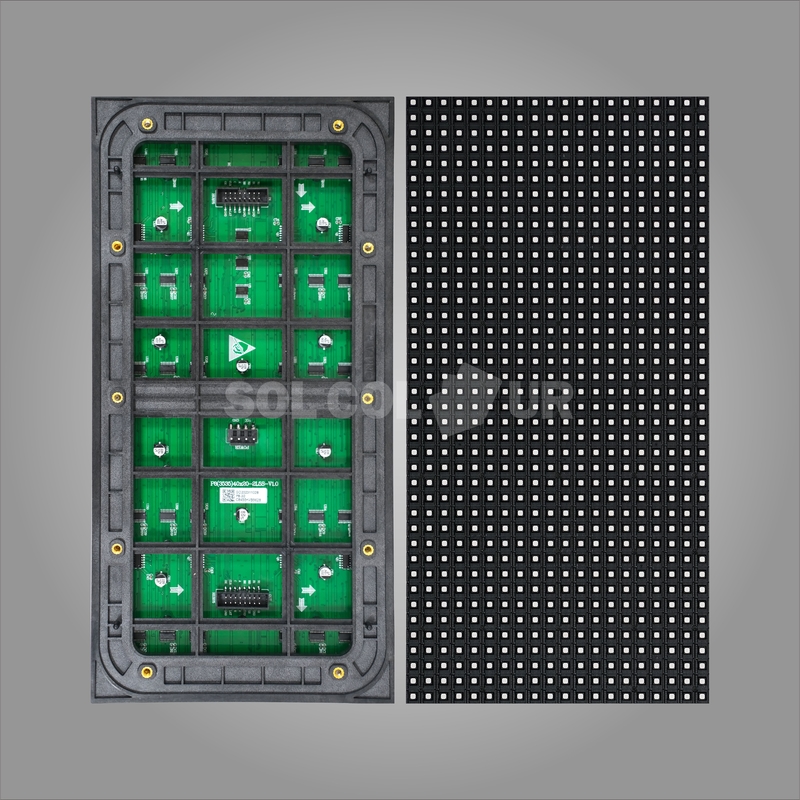

1920Hz-7680Hz Outdoor LED Display Module IP65 Low Power Consumption

Name: 1920Hz-7680Hz Outdoor LED Display Module IP65 Low Power Consumption
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P2.5/P3/P3.076/P4/P5/P5.92/P6.667/P8/P10
Price: 525.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P2.5/P3/P3.076/P4/P5/P5.92/P6.667/P8/P10

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1sqm

Price: Negotiated

Packaging Details: Flight case, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                7680Hz Outdoor LED Display Module, Outdoor LED Display Module IP65, 7680Hz  led screen module


LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified	Refresh Rate:	1920Hz-7680Hz
Protection Level:	IP65	Max. Power Consumption:	≤900w/m²
Ave. Power Consumption:	≤300w/m²	Viewing Angle:	110°
Uasge:	Outdoor	Work Voltage:	AC220V±10%
Maintenance:	Front/Rear	Lifespan:	100000(Hours)

LEDs Brand:	Nationstar/Kinglight/Ruisheng/Mulinsen/specified
Refresh Rate:	1920Hz-7680Hz
Protection Level:	IP65
Max. Power Consumption:	≤900w/m²
Ave. Power Consumption:	≤300w/m²
Viewing Angle:	110°
Uasge:	Outdoor
Work Voltage:	AC220V±10%
Maintenance:	Front/Rear
Lifespan:	100000(Hours)

1920Hz-7680Hz Outdoor LED Display Module IP65 Low Power Consumption

Product features:

1. Original "cold screen" technology, stable and 60% lower than conventional, effectively controls temperature rise, and screen operation is more stable

2. Low power consumption, true energy saving, saving about 70% of electricity, high-efficiency energy-saving driver IC, reducing circuit drive loss and reducing operating costs

3. CNC precision-processed magnesium aluminum cabinet, 22KG/m² lighter than traditional iron cabinet, 8KG/m² lighter than die-cast aluminum cabinet

4. Fully sealed magnesium aluminum cabinet design, waterproof, dustproof, anti-corrosion, flame retardant, anti-ultraviolet protection level up to IP65

Product technical specifications:

Item	Specification
Model	P2.5	P3	P3.076	P4	P5	P5.92	P6.667	P8	P10
Pitch	2.5mm	3mm	3.076mm	4mm	5mm	5.92mm	6.667mm	8mm	10mm
LEDs	SMD1415	SMD1415	SMD1415	SMD1921	SMD2727	SMD2727	SMD2727	SMD3535	SMD3535
Module size	320*160	192*192	320*160
Scan	16S	16S	13S	10S	8S	7S	6S	5S	2S
Resolution	128X64	64X64	104X52	80X40	64X32	54X27	48X24	40X20	32X16
Pixel density(dot/m²)	160000	111111	90000	62500	40000	28476	22201	15625	10000
IP rate	IP65
Maintenance	Rear			Front/Rear
White balance brightness(cd/m²)	4500	4500	4500	4500～5000	5500	5500	5500	5000～5500	6000～6500
Horizontal viewing angle	110°
Vertical viewing angle	110°
Max. power consumption	≤900W/m²	≤900W/m²	≤780W/m²	≤740W/m²	≤760W/m²	≤780W/m²
Ave. power consumption	≤300W/m²	≤300W/m²	≤250W/m²	≤230W/m²	≤240W/m	≤250W/m²
Work voltage	AC220V±10%
Refresh rate	≥3840			≥1920
Lifespan	100000(Hours)
Operating temperature	-20℃~+65℃
Storage temperature	-35℃~+80℃
Operating humidity	10~90%RH
Storage humidity	10~95%RH
