Highlight:
Narrow Pixel Pitch Led Display P1.667
, small pitch led display P1.667
, High Contrast p1.667 led display
High Contrast Ratio Narrow Pixel Pitch Led Display P1.667 Wide Viewing Angles
High Contrast Ratio Small Pixel Pitch LED Display Wide Viewing Angles Floor Standing
Product Features:
1) Wide viewing angles
2) Seamless and lightweight
3) Dynamic scanning with truer, more stable pictures( no flickering)
4) Modular design for easy installation and maintenance
5) Consistent uniformity over time
6) Brilliant colors, breathtaking grayscales
7) Operating software compatible with widely available software
8) Remove the tools, improve the serviceability
Advantage:
1. Wide Applicability: Stage rental events, entertainment, indoor and outdoor environment.
2. Light Weight:Using aluminum profile material, the cabinet weight is only 4.5 kg.
3. High Contrast Ratio: novel design of mask,contrast ratio can reach 2800.
4. Quiet:Direct current fan only has little noise.
5. Thin:the thickest part of cabinet is only 75mm.
6. High Precision:each cabinet of precision deviation <0.1mm.
7. High Refreshing:Usually it can reach 2800Hz,but it can reach 3200Hz if you use appropriative IC.
8. Convenient and Fast Installation.
9. Best Cabinet Size: 400mm*300mm(Customize Size)
Application:
Outdoor full color LED display could be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dustproof, antistatic, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
Product Specification:
| Items |
Parameter |
| Pixel Pitch |
PH1.677mm |
| Cabinet Resolution(W*H) |
240*180 |
| Pixel Configuration |
1R1G1B(in 3 n 1) |
| LED Encapsulation |
SMD 1010 |
| Pixel Density |
360000 Pixel/ m2 |
| Driving Method |
1/30 Scan |
| Refresh Frequency |
≥2880Hz (Support High refresh rate, depend on the system configuration) |
| Driver IC |
MBI5153 |
| Grey Scale |
14Bit (depending on the system and IC configuration) |
| Cabinet Size |
400*300mm |
| White balance Brightness |
≥800cd/ m2 (adjustable) |
| Color Temperature |
8000K±500 (adjustable) |
| Viewing Angle |
Horizontal 140° Vertical 120° |
| Optimal Viewing Distance |
>2m |
| Working Voltage |
AC 220V/110V ±10% |
| Module voltage |
DC4.2V |
| Max Power Consumption |
100W/PCS |
| Avg. Power Consumption |
50W/PCS |
| Life span |
100000hours |
| Operating Temperature |
–10℃~ 50℃ |
| Net weight |
4.8Kg/pcs |

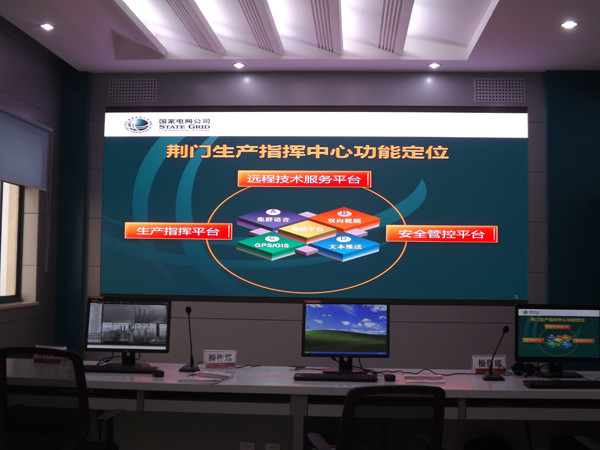

Product Show
