800nits Brightness Small Pixel Pitch LED Display High Stability Wide Viewing Angle

Name: 800nits Brightness Small Pixel Pitch LED Display High Stability Wide Viewing Angle
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P2.5
Price: 2,250.00 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN CHINA

Brand Name: SC

Certification: ,ROSH, FCC.3C,ISO9001

Model Number: P2.5

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 MeSquareters

Price: Negotiable

Packaging Details: Wooden box,Flight Case

Delivery Time: 10 days after received deposit

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                800nits Small Pixel Pitch LED Display, small pitch led display High Stability, 800nits  small pixel pitch led screen


Usage:	Indoor	Refresh Rate:	3840HZ
Warranty:	2 Years	Model Number:	P2.5
Brightness:	800nits	Place Of Origin:	Shenzhen China
Pixel Configuration:	1R1G1B	IC:	MBI5153
LED Lamp:	Nationstar 1010	Scan Mode:	32S

Usage:	Indoor
Refresh Rate:	3840HZ
Warranty:	2 Years
Model Number:	P2.5
Brightness:	800nits
Place Of Origin:	Shenzhen China
Pixel Configuration:	1R1G1B
IC:	MBI5153
LED Lamp:	Nationstar 1010
Scan Mode:	32S

800nits Brightness Small Pixel Pitch LED Display High Stability Wide Viewing Angle

Product Description :

1 . P2.5 indoor led screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine.

2 . It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.

3 . It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.

4 . It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.

Features :

1 . High Precision Aluminum Sheet Metal panel achieves high flatness and seamless matching of the whole display

2 . Color uniformity, high contrast, clear picture

3 . Ultra thin body, easy to transport and loading and unloading

4 . High stability, high reliability, long service life

5 . Support for both front and back maintenance, easy installation

Product Specification:

P2.5 Indoor LED Display
	Pixel Pitch(mm)	2.5mm
	Pixel configuration	1R1G1B / SMD2121 Black lamp
	Pixel density	160000dots/sqm
	Brightness	≥1200cd/sqm
	Module size(W*H)	160mm×160mm
	Module Resolution (W*H)	64 dots x 64dots
	Module weight	300g
	Cabinet size (W*H)	480mm×480mm
	Drive IC	MBI5124
	Drive mode	1/24scan
	Viewing Angle(V/H)	140 ºC
	Grey Scale	65536 degree
	Life time	>100,000 Hours (80%)
	MTBF	>50,000 Hours
	Operating Voltage	AC110V/220V±10%
	Screen Power Consumption	Max: 1000w/sqm; Average:330w/sqm
	Input Power Frequency	50/60Hz
	Operating temperature	-30--60ºC
	Humidity	10%-95%
	Refresh Rate	≥1920HZ
	Control Method	Synchronized with computer monitor
	Color Temperature	6500K-9500K
	LED control system	LINSN,Nova-star,Colorlight is selectable
	Control Distance	100 m (no repeating); Optical fiber transmission: 500m- 15km
	Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
	Systems Operating Platform	Windows Xp / Windows 7 / windows 8 /8.1 / windows 10

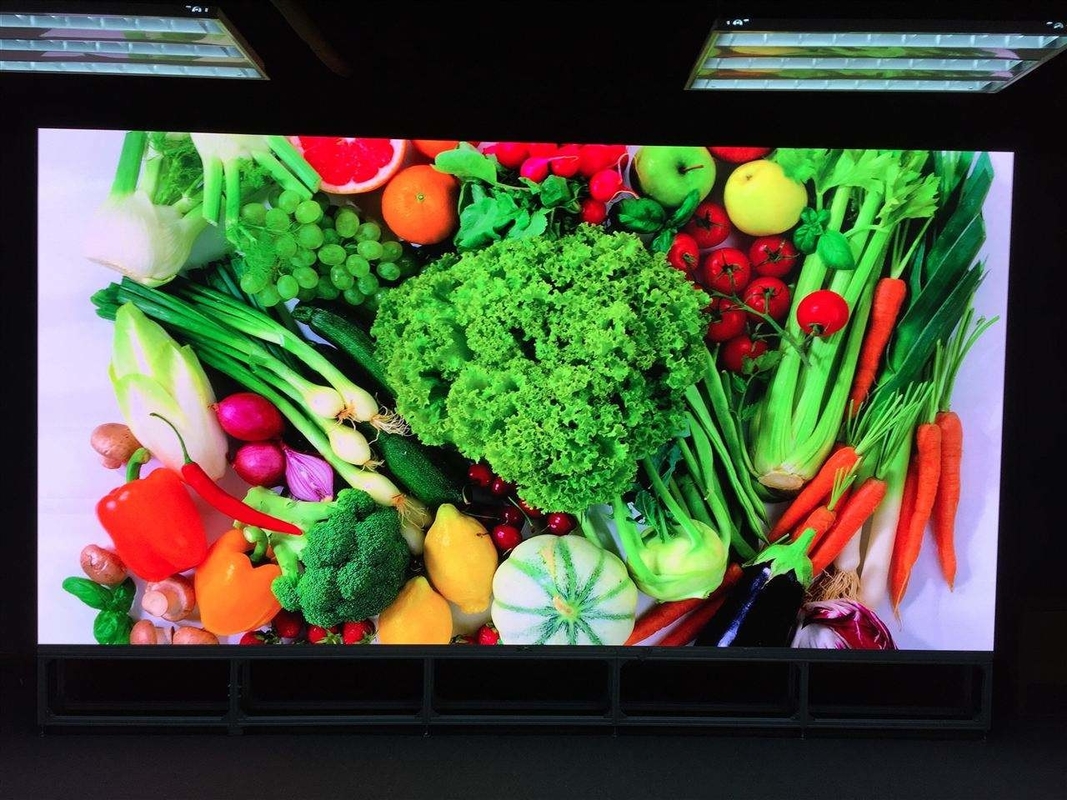

Product Show
