Product Details
Place of Origin: SHENZHEN CHINA
Brand Name: SC
Certification: ,ROSH, FCC.3C,ISO9001
Model Number: P1.667
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 Square Meters
Price: Negotiable
Packaging Details: Wooden box,Flight Case
Delivery Time: 10 days after received deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Square Meter/Square Meters per Month
|
Usage:
|
Indoor
|
Refresh Rate:
|
1000HZ
|
Warranty:
|
2 Years
|
Model Number:
|
P1.667
|
Brightness:
|
1800nits
|
Place Of Origin:
|
Shenzhen China
|
Pixel Configuration:
|
1R1G1B
|
IC:
|
MBI5153
|
LED Lamp:
|
Nationstar 1010
|
Scan Mode:
|
30S
|
|
Usage:
|
Indoor
|
|
Refresh Rate:
|
1000HZ
|
|
Warranty:
|
2 Years
|
|
Model Number:
|
P1.667
|
|
Brightness:
|
1800nits
|
|
Place Of Origin:
|
Shenzhen China
|
|
Pixel Configuration:
|
1R1G1B
|
|
IC:
|
MBI5153
|
|
LED Lamp:
|
Nationstar 1010
|
|
Scan Mode:
|
30S
|
Waterproof Soft Led Display Screen , Full Color Square Led Publicity Screens
Product Features:
Advantage:
1.Wide Applicability: Stage rental events, entertainment, indoor and outdoor environment.
2.Light Weight:Using aluminum profile material, the cabinet weight is only 4.5 kg.
3.High Contrast Ratio: novel design of mask,contrast ratio can reach 2800.
4.Quiet:Direct current fan only has little noise.
5.Thin:the thickest part of cabinet is only 75mm.
6.High Precision:each cabinet of precision deviation <0.1mm.
7.High Refreshing:Usually it can reach 2800Hz,but it can reach 3200Hz if you use appropriative IC.
8.Convenient and Fast Installation.
9.Best Cabinet Size: 400mm*300mm(Customize Size)
Application:
Outdoor full color LED display could be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dustproof, antistatic, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
Product Specification:
| Items | Parameter |
| Pixel Pitch | PH1.677mm |
| Cabinet Resolution(W*H) | 240*180 |
| Pixel Configuration | 1R1G1B(in 3 n 1) |
| LED Encapsulation | SMD 1010 |
| Pixel Density | 360000 Pixel/ m2 |
| Driving Method | 1/30 Scan |
| Refresh Frequency | ≥2880Hz (Support High refresh rate, depend on the system configuration) |
| Driver IC | MBI5153 |
| Grey Scale | 14Bit (depending on the system and IC configuration) |
| Cabinet Size | 400*300mm |
| White balance Brightness | ≥800cd/ m2 (adjustable) |
| Color Temperature | 8000K±500 (adjustable) |
| Viewing Angle | Horizontal 140° Vertical 120° |
| Optimal Viewing Distance | >2m |
| Working Voltage | AC 220V/110V ±10% |
| Module voltage | DC4.2V |
| Max Power Consumption | 100W/PCS |
| Avg. Power Consumption | 50W/PCS |
| Life span | 100000hours |
| Operating Temperature | –10℃~ 50℃ |
| Net weight | 4.8Kg/pcs |

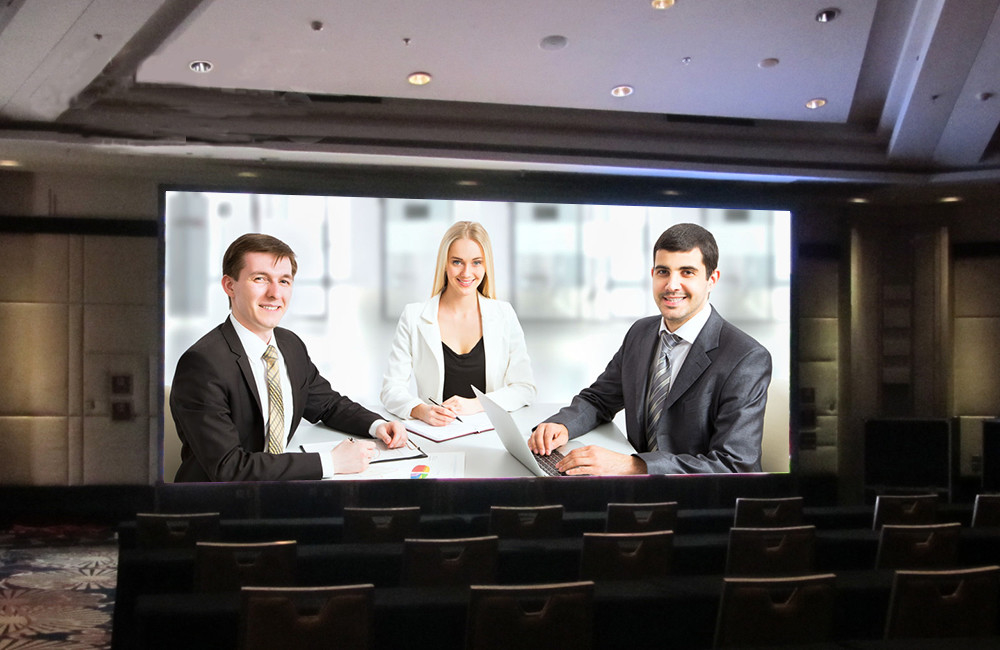

Product Show
