Product Details
Place of Origin: China
Brand Name: Sol-colur
Certification: CE/FCC/ROHS/ISO
Model Number: P8/P10
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Carton box, Wooden case
Delivery Time: 10 working days after receiving deposit
Payment Terms: L/C, T/T
Supply Ability: 5000sqm/month
|
Module Size:
|
320x160mm
|
Cabinet Size:
|
960x960mm Or Customized
|
Cabinet Material:
|
Iron / Aluminum / Magnesium
|
LEDs Brand:
|
Nationstar/Kinglight/Mulinsen/Specificed
|
Refresh Rate:
|
3840Hz - 7680Hz
|
Brightness:
|
5000nits - 6000nits
|
Max. Power Consumption:
|
760W/㎡
|
Ave. Power Consumption:
|
240W/㎡
|
Gray Level:
|
14bits - 16bits
|
Viewing Distance:
|
≥5m
|
Protection Level:
|
IP65
|
Operating Voltage:
|
AC110V/220V±10%
|
|
Module Size:
|
320x160mm
|
|
Cabinet Size:
|
960x960mm Or Customized
|
|
Cabinet Material:
|
Iron / Aluminum / Magnesium
|
|
LEDs Brand:
|
Nationstar/Kinglight/Mulinsen/Specificed
|
|
Refresh Rate:
|
3840Hz - 7680Hz
|
|
Brightness:
|
5000nits - 6000nits
|
|
Max. Power Consumption:
|
760W/㎡
|
|
Ave. Power Consumption:
|
240W/㎡
|
|
Gray Level:
|
14bits - 16bits
|
|
Viewing Distance:
|
≥5m
|
|
Protection Level:
|
IP65
|
|
Operating Voltage:
|
AC110V/220V±10%
|
1. Easy Installation And Maintenance.
2. Large View Angle.
3. High Protection IP65.
4. High Refresh Rate 3840Hz - 7680Hz.
5. Soft Masks for Protection.
| Parameter | ||
| Model | P8 | P10 |
| Pixel Pitch | 8mm | 10mm |
| LEDs | SMD3535 | SMD3535 |
| Module size | 320mmx160mm | 320mmx160mm |
| Module Resolution | 40×20 dots | 32×16 dots |
| Density | 15625dots/㎡ | 10000dots/㎡ |
| Cabinet material | Iron / Aluminum / Magnesium | Iron / Aluminum / Magnesium |
| Cabinet size | 960mmx960mm | 960mmx960mm |
| Best viewing distance | >8m | >10m |
| Best viewing angle | 140° | 140° |
| Brightness | ≥5000cd/㎡ | ≥5000cd/㎡ |
| Driving method | 1/5 scan | 1/2 scan |
| Gray scale | 14-16 bits | 14-16 bits |
| Refresh frequency | 3840Hz - 7680Hz | 3840Hz - 7680Hz |
| IP level | IP65 | IP65 |
| Color temperature | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current |
| Working voltage | AC110V/220V±10% | AC110V/220V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours |
| Frame frequency | 50-60Hz | 50-60Hz |
| Life Span | 100,000 hours | 100,000 hours |

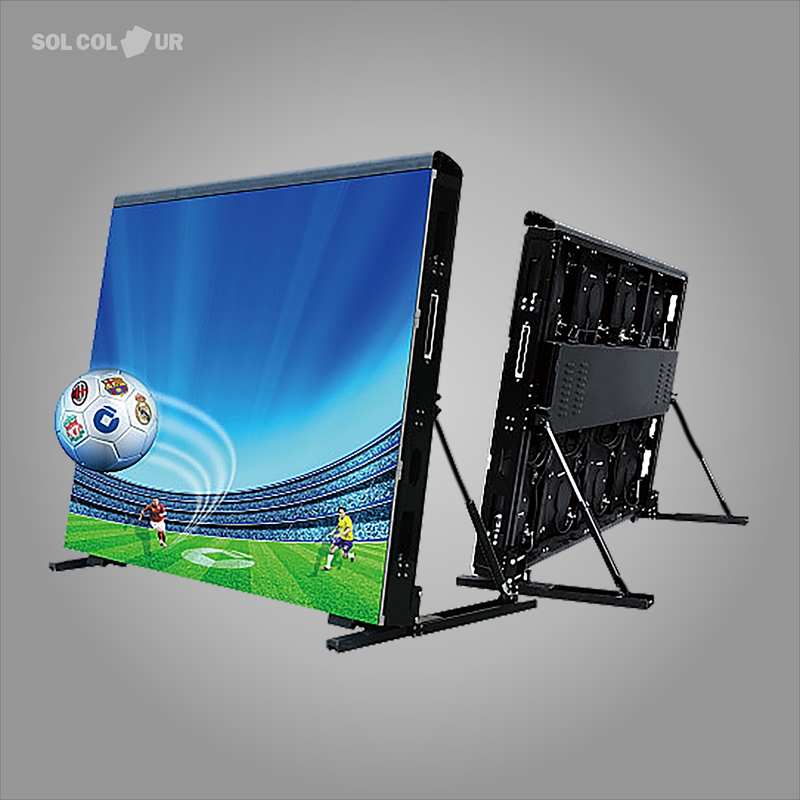

Reference pictures:
