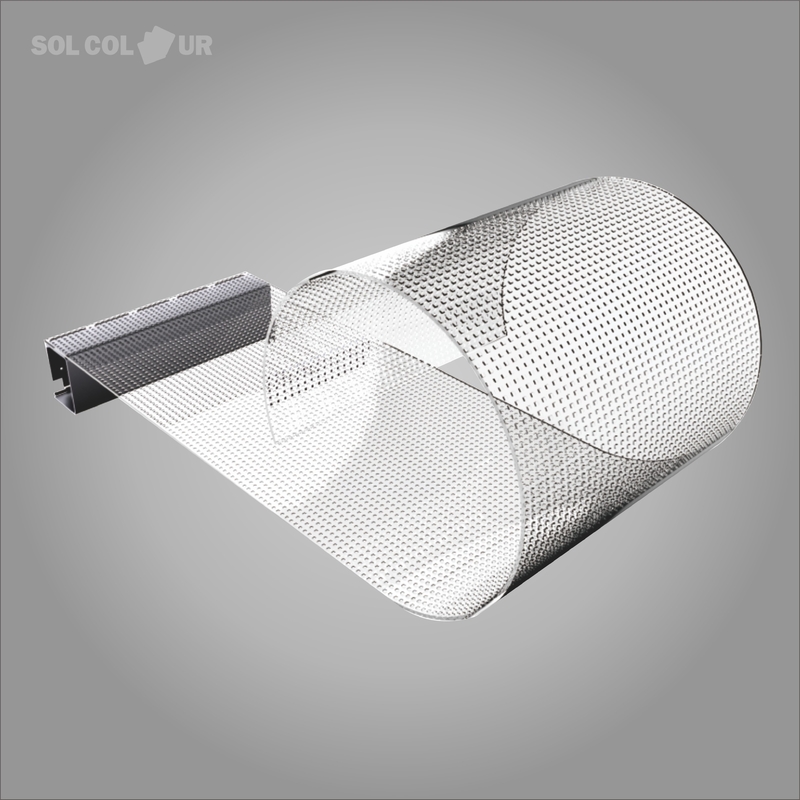

Flexible Transparent LED Film Screen Module Glasses Installation Wide Viewing Angle

Name: Flexible Transparent LED Film Screen Module Glasses Installation Wide Viewing Angle
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P4-8/P6/P8/P10/P16/P20/P30
Price: 1,756.30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sol-colur

Certification: CE/FCC/ROHS/ISO

Model Number: P4-8/P6/P8/P10/P16/P20/P30

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: Negotiated

Packaging Details: Carton box, Wooden case

Delivery Time: 10 working days after receiving deposit

Payment Terms: L/C, T/T

Supply Ability: 5000sqm/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Transparent LED Film Screen Glasses Installation, Flexible  Transparent LED Film Screen, Glasses Installation  transparent led film display


Module Size:	1000x240mm	Brightness:	1200nits-3500nits
Transparency:	90%-95%	Refresh Rate:	3840Hz-7680Hz
Max. Power Consumption:	720W/㎡	Ave. Power Consumption:	260W/㎡
Gray Level:	16bits	Viewing Angle:	160°
Scan Mode:	Static Scan	Operating Voltage:	AC 110V/220V ±10%, 50-60Hz

Module Size:	1000x240mm
Brightness:	1200nits-3500nits
Transparency:	90%-95%
Refresh Rate:	3840Hz-7680Hz
Max. Power Consumption:	720W/㎡
Ave. Power Consumption:	260W/㎡
Gray Level:	16bits
Viewing Angle:	160°
Scan Mode:	Static Scan
Operating Voltage:	AC 110V/220V ±10%, 50-60Hz

Flexible Transparent LED Film Screen Module Glasses Installation Wide Viewing Angle

Product features:

1. It is easy to install, no steel structure is required, and it can be installed directly with glass.

2. High transparency, high durability, UV resistance, high and low temperature resistance.

3. Low power consumption design, energy-saving and environmentally friendly, in line with the concept of green and low-carbon development.

4. Ultra-wide viewing angles 160°

5. A wide range of applications.

Product technical specifications:

Parameter
Model	P4-8	P6	P8	P10	P16	P20	P30
Module size	1000x240mm
Module resolution	250x30 dots	166x40 dots	125x30 dots	100x24 dots	64x15 dots	50x12 dots	34x8 dots
Screen resolution	250x125 dots	166x166 dots	125x125 dots	100x100 dots	64x64 dots	50x50 dots	34x34 dots
Brightness	2500 cd/㎡	3500 cd/㎡	3500 cd/㎡	3500 cd/㎡	2500 cd/㎡	2000 cd/㎡	1200 cd/㎡
Refresh rate	3840Hz-7680Hz	3840Hz-7680Hz	3840Hz-7680Hz	3840Hz-7680Hz	3840Hz-7680Hz	3840Hz-7680Hz	3840Hz-7680Hz
Gray level	16bits	16bits	16bits	16bits	16bits	16bits	16bits
Scan mode	Static scan	Static scan	Static scan	Static scan	Static scan	Static scan	Static scan
Viewing angle	160°
Transparency	90%	93%					95%
Max. power consumption	720W/㎡	720W/㎡	720W/㎡	720W/㎡	720W/㎡	720W/㎡	720W/㎡
Ave. power consumption	260W/㎡	260W/㎡	260W/㎡	260W/㎡	230W/㎡	220W/㎡	200W/㎡
Operating temperature	-0-55℃
Operating humidity	10-75% RH
Operating voltage	AC 110V / 220V ±10%

Reference pictures:
