Highlight:
                                                                                                                                                                                                                ROHS Certified Roadside Led Display, Outdoor Waterproof Led Advertising Panels 10mm, ROHS Outdoor Waterproof Led Advertising Panels


Module Size:	320mm*160mm	Pixel Pitch:	10mm
Max Power:	35W	Weight:	0.37kg
Scan Mode:	1/4

Module Size:	320mm*160mm
Pixel Pitch:	10mm
Max Power:	35W
Weight:	0.37kg
Scan Mode:	1/4

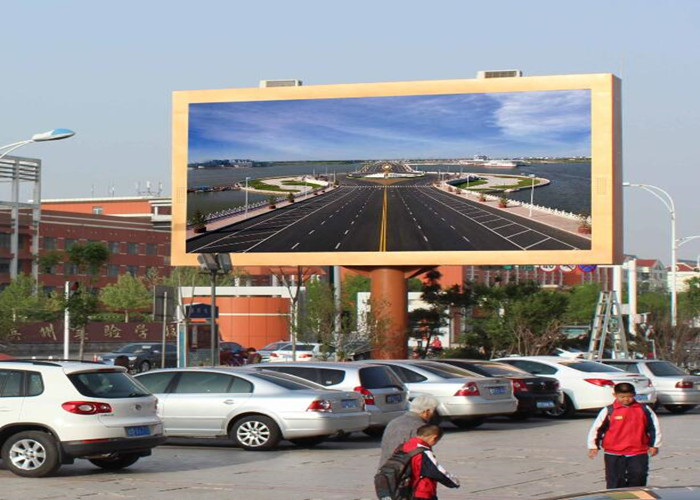

ROHS Certified Roadside Led Display Outdoor Waterproof Led Advertising Panels 10mm

Scanmode 1/4 Led Outdoor Advertising Screens , Led Video Panels Pixel Pitch 10mm

Product description

1. High performance, cost effective.

2. Low power consumption, energy saving and friendly use.

3.With high and adjustable brightness, it can fully satisfy various customer requirements.

4. Long lifespan up to 100,000 hours.

5.It can achieve single-dot and single-lamp maintenance with relatively low maintenance cost and easy maintenance

P10 outdoor technology parameters

sUnit Module	Item	Parameter
	Model Number	SF-SS10-4S-A
	Module size	320mm*160mm
	Pixel pitch	10mm
	Pixels Density	10000dots/m2
	Pixel configuration	1R1G1B
	Package mode	SMD3535
	Pixel resolution	32dots(W)*16dots(H)
	Max Power	35W
	Module thickness	22mm
	Weight	0.37kg
	Drive type	Constant drive
	Scan mode	1/4
	Port type	HUB75-A
	Brightness of white balance	≥6800～7200cd/m2
LED Cabinet	Dimension	960mm960mm100 mm
	Monomer Module Number	18pcs
	Power supply	5V/40A*4pcs
	Thermal discharge	fan 2pcs
	Pixel per cabinet	96mm*96mm
	Best viewing distance	8M～15M
	Best viewing angle	120°(W) 110°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Relative humidity	10%-95%
	Thickness	122mm
Power	Working voltage	AC220V±10%
	Average Power consumption	180W/㎡
	Max Power consumption	≤480W/㎡
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above P4
	Operation system	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	≥1200HZ
	Grey scale/colors	4096gray level/16.7M colors
	MTBF	≥9000hours
	Power switch	Automatic switch
	Display Mode	≥800600/1024768
