1R1G1B 25Watt Outdoor Fixed LED Display Low Power Consumption Long Lifespan
1R1G1B 25Watt Outdoor Fixed LED Display Low Power Consumption Long Lifespan
1R1G1B 25Watt Outdoor Fixed LED Display Low Power Consumption Long Lifespan
1R1G1B 25Watt Outdoor Fixed LED Display Low Power Consumption Long Lifespan

1R1G1B 25Watt Outdoor Fixed LED Display Low Power Consumption Long Lifespan

Product Details

Place of Origin: SHENZHEN,CHINA

Brand Name: SOL COLUR

Certification: CE,FCC,RoHS

Model Number: P5

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Square Meters

Price: Negotiable

Packaging Details: CARTON,WOODEN CASE，FLIGHT CASE

Delivery Time: 15-20days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price

Product Details

Product Description
Highlight:

25Watt Outdoor Fixed LED Display

,

Outdoor Fixed LED Display Long Lifespan

,

25Watt Outdoor Fixed LED screen

Pixel Pitch:
5mm
Module Size:
160mm*160mm
Pixel Configuration:
1R1G1B
Max Power:
25W
Weight:
0.37kg
Pixel Pitch:
5mm
Module Size:
160mm*160mm
Pixel Configuration:
1R1G1B
Max Power:
25W
Weight:
0.37kg
1R1G1B 25Watt Outdoor Fixed LED Display Low Power Consumption Long Lifespan

1R1G1B 25W Outdoor Advertising LED Display Constant Drive Low Power Consumption



Product description

1. High performance, cost effective.

2. Low power consumption, energy saving and friendly use.

3. Short leading time for fast delivery.

4. Certification: CE, FCC, ROHS

5. Long lifespan up to 100,000 hours.

                                           P5 outdoor full-color technology parameters

Unit Module Item Parameter
Model Number SF-SS5-8-A
Module size 160mm*160mm
Pixel pitch 5mm
Pixels Density 40000dots/m2
Pixel configuration 1R1G1B
Package mode SMD2727
Pixel resolution 32dots(W)*32dots(H)
Max Power 25W
Module thickness 22mm
Weight 0.37kg
Drive type Constant drive
Scan mode 1/8
Port type HUB75-A
Brightness of white balance ≥5500～6000cd/m2

LED

Cabinet



 Dimension 960mm*960mm*100 mm
Monomer Module Number 36pcs
Power supply 5V/40A*6pcs
Thermal discharge fan 2pcs
Pixel per cabinet 96mm*96mm
Best viewing distance 5M～15M
Best viewing angle 120°(W) 110°(H)
Temperature

storage:-35℃～+85℃

working:-20℃～+50℃
Relative humidity 10%-95%
Thickness 122mm
Power Working voltage AC220V±10%
Average Power consumption 350W/㎡
Max Power consumption ≤1200W/㎡
Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

 Driving device Constant drive IC
Refresh frequency ≥1920HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥10000hours
Power switch Automatic switch
Display Mode ≥800*600/1024*768



Functin of LED Display:

1, Video in any format can be played

2, Picture can by played and logo and text can be added on the picture

3, Animations,cartoons,text

4, Date,Time and clock

5, Display internal data from database or excel

6, LED Display can be splicing to several parts and play its information sepatately.

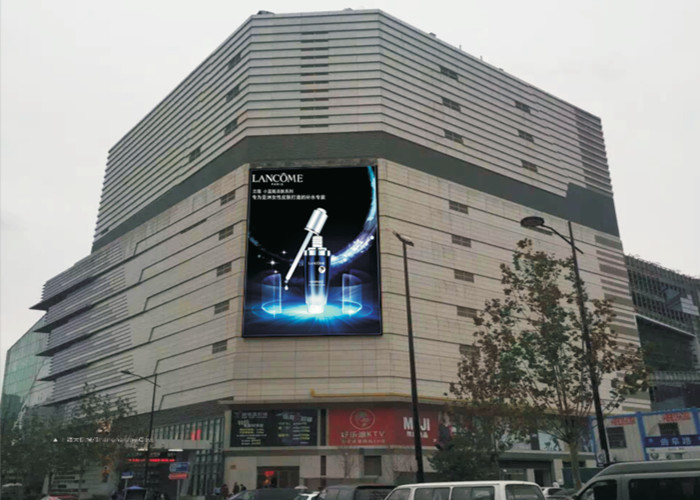

Project Show:



1R1G1B 25Watt Outdoor Fixed LED Display Low Power Consumption Long Lifespan 0





Tags:

outdoor smd led display,

outdoor led video display,

Outdoor Full Color Led screen
