Constant Drive 35W P10 Outdoor Led Screen 1R1G1B High Resolution Led Screen

Product Details

Place of Origin: SHENZHEN,CHINA

Brand Name: SOL COLUR

Certification: IP65,CCC,CE

Model Number: P10

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Square Meters

Price: Negotiable

Packaging Details: CARTON,WOODEN CASE，FLIGHT CASE

Delivery Time: 15-20days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                35W High Resolution Led Screen, 1R1G1B  High Resolution Led Screen, P10 Outdoor Led Screen 1R1G1B


Module Size:	320mm*160mm	Max Power:	35W
Pixel Pitch:	10mm	Weight:	0.37kg
Pixel Configuration:	1R1G1B

Module Size:	320mm*160mm
Max Power:	35W
Pixel Pitch:	10mm
Weight:	0.37kg
Pixel Configuration:	1R1G1B

Constant Drive 35W P10 Outdoor Led Screen 1R1G1B High Resolution Led Screen

P10 35W Outdoor Led Advertising Screens Brightness 6000-6500 1R1G1B Pixel Configuration

P10 outdoor full-color technology parameters

sUnit Module	Item	Parameter
	Model Number	SF-SS10-4S-A
	Module size	320mm*160mm
	Pixel pitch	10mm
	Pixels Density	10000dots/m2
	Pixel configuration	1R1G1B
	Package mode	SMD3535
	Pixel resolution	32dots(W)*16dots(H)
	Max Power	35W
	Module thickness	22mm
	Weight	0.37kg
	Drive type	Constant drive
	Scan mode	1/4
	Port type	HUB75-A
	Brightness of white balance	≥6800～7200cd/m2
LED Cabinet	Dimension	960mm960mm100 mm
	Monomer Module Number	18pcs
	Power supply	5V/40A*4pcs
	Thermal discharge	fan 2pcs
	Pixel per cabinet	96mm*96mm
	Best viewing distance	8M～15M
	Best viewing angle	120°(W) 110°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Relative humidity	10%-95%
	Thickness	122mm
Power	Working voltage	AC220V±10%
	Average Power consumption	180W/㎡
	Max Power consumption	≤480W/㎡
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above P4
	Operation system	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	≥1200HZ
	Grey scale/colors	4096gray level/16.7M colors
	MTBF	≥9000hours
	Power switch	Automatic switch
	Display Mode	≥800600/1024768

Product Description

LED display, also called led screen, led video wall, or led sign, with its unique advantages, has gradually replaced the traditional billboards, light boxes, etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution, high brightness and full colour!

LED display Advertising screen can easily attract the attention of pedestrians, and also are easy to remember, which can generate greater advertising effectiveness.Led display screen now are widely applied in media advertising, transportation, Security,Real estate and Stage show background.

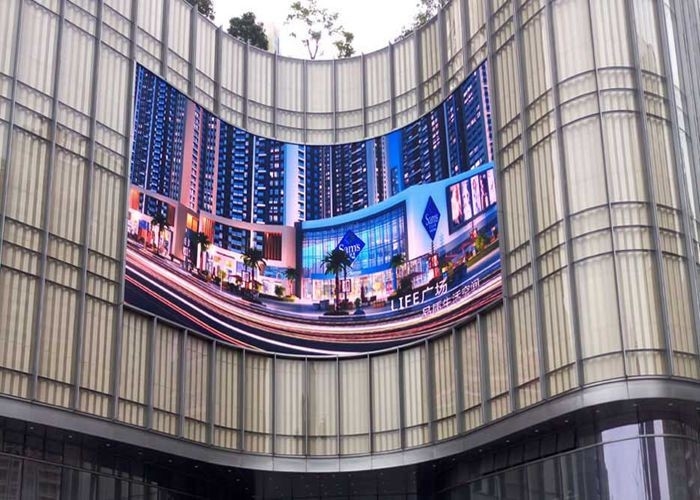

Project Show:

Constant Drive 35W P10 Outdoor Led Screen 1R1G1B High Resolution Led Screen 0
