SMD3535 Outdoor Fixed LED Display 10mm IP65 Led Screen Waterproofing

Product Details

Place of Origin: SHENZHEN,CHINA

Brand Name: SOL COLUR

Certification: IP65,RoHS,CE

Model Number: P10

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Square Meters

Price: Negotiable

Packaging Details: CARTON,WOODEN CASE，FLIGHT CASE

Delivery Time: 15-20days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                10mm IP65 Led Screen, IP65 Led Screen Waterproofing, SMD3535 Outdoor Fixed LED Display


Module Size:	320mm*160mm	Pixel Resolution:	32dots(W)*16dots(W)
Max Power:	35W	Pixel Pitch:	10mm
Weight:	0.37kg

Module Size:	320mm*160mm
Pixel Resolution:	32dots(W)*16dots(W)
Max Power:	35W
Pixel Pitch:	10mm
Weight:	0.37kg

SMD3535 Outdoor Fixed LED Display 10mm IP65 Led Screen Waterproofing

SMD3535 35W Outdoor Advertising LED Display Pixel Pitch 10mm IP65 Waterproof

Product Description

1. Large viewing angle,both H/V can reach 110 degree;getting vivid effect within any position of the viewing range.

2. Excellent visual effect, better viewing effect for text and graphic or video.

3. High contrast ratio and good evenness, high uniformity.

4. Fit for the outdoor fixed commercial applications such as shopping mall, mobile truck ,single/double pole mounted,wall mounted

5. High contrast ratio and good evenness, high uniformity,without mosaic.

P10 outdoor full-color technology parameters

sUnit Module	Item	Parameter
	Model Number	SF-SS10-4S-A
	Module size	320mm*160mm
	Pixel pitch	10mm
	Pixels Density	10000dots/m2
	Pixel configuration	1R1G1B
	Package mode	SMD3535
	Pixel resolution	32dots(W)*16dots(H)
	Max Power	35W
	Module thickness	22mm
	Weight	0.37kg
	Drive type	Constant drive
	Scan mode	1/4
	Port type	HUB75-A
	Brightness of white balance	≥6800～7200cd/m2
LED Cabinet	Dimension	960mm960mm100 mm
	Monomer Module Number	18pcs
	Power supply	5V/40A*4pcs
	Thermal discharge	fan 2pcs
	Pixel per cabinet	96mm*96mm
	Best viewing distance	8M～15M
	Best viewing angle	120°(W) 110°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Relative humidity	10%-95%
	Thickness	122mm
Power	Working voltage	AC220V±10%
	Average Power consumption	180W/㎡
	Max Power consumption	≤480W/㎡
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above P4
	Operation system	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	≥1200HZ
	Grey scale/colors	4096gray level/16.7M colors
	MTBF	≥9000hours
	Power switch	Automatic switch
	Display Mode	≥800600/1024768

Features:
1. IP65 Waterproof protect.
2. Multi-Control systems can be Optional.
3. High Brightness and Refresh Rate.
4. Energy Saving.
5. High Uniformity & Contract.
6. Efficient After-sales.
7. Certification with CE, ROHS,IP65

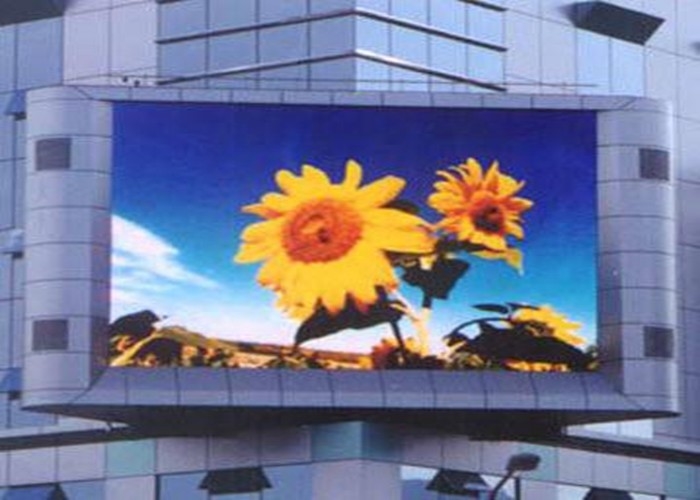

Project Show:

SMD3535 Outdoor Fixed LED Display 10mm IP65 Led Screen Waterproofing 0
