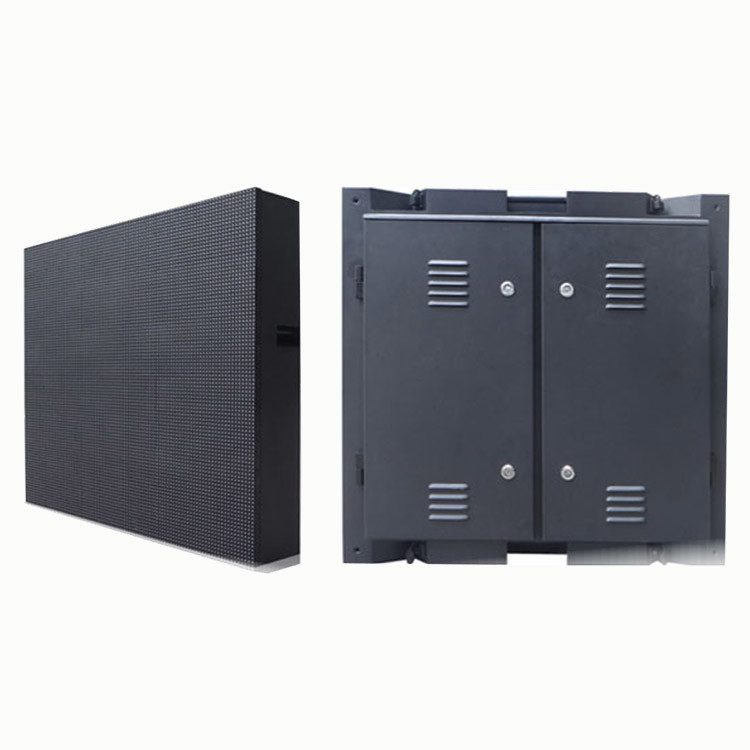

Name: P8 Outdoor LED Wall Screen Advertising LED Display Panels
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: outdoor SMDP8
Price: 506.30 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN CHINA

Brand Name: SC

Certification: CCC IP68 CE

Model Number: outdoor SMDP8

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: Square Meters / 1 Piece

Price: Negotiable

Packaging Details: Wooden box,Flight Case

Delivery Time: 10 days after received deposit

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                P8 Outdoor LED Wall Screen, P8 Outdoor LED Display Panels, Advertising LED Display Panels


Module Size:	320*160mm	Brightness:	6000-6500nits
Control Method:	Synchronization	Color:	1R1G1B
Module Number:	Outdoor P8	Led Package:	Nationstar SMD3535
Warranty:	2 Years	Pixel Resolution:	32dots(W)*16dots(H)

Module Size:	320*160mm
Brightness:	6000-6500nits
Control Method:	Synchronization
Color:	1R1G1B
Module Number:	Outdoor P8
Led Package:	Nationstar SMD3535
Warranty:	2 Years
Pixel Resolution:	32dots(W)*16dots(H)

P8 Outdoor LED Wall Screen Advertising LED Display Panels

Product Specification:

Unit Module	Item	Parameter
	Model Number	SF-SS10 -2-A
	Module size	320mm*160mm
	Pixel pitch	10mm
	Pixels Density	10000dots/m2
	Pixel configuration	1R1G1B
	LED Package mode	NationStar SMD3535
	Pixel resolution	32dots(W)*16dots(H)
	Max Power	35W
	Module thickness	22mm
	Weight	0.37kg
	Drive type	Constant drive
	Scan mode	1/2
	Port type	HUB75-A
	Brightness of white balance	≥6800～7200cd/m2
LED Cabinet	Dimension	960mm960mm100 mm
	Monomer Module Number	18pcs
	Power supply	5V/40A*4 pcs
	Thermal discharge	fan 2pcs
	Pixel per cabinet	96mm*96mm
	Best viewing distance	8M～15M
	Best viewing angle	120°(W) 110°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Relative humidity	10%-95%
	Thickness	122mm
Power	Working voltage	AC220V±10%
	Average Power consumption	300W/㎡
	Max.Power consumption	≤800W/㎡
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above
	Operation system	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	≥1200HZ
	Grey scale/colors	4096gray level/16.7M colors
	MTBF	≥9000hours
	Power switch	Automatic switch
	Display Mode	≥800600/1024768

Advantage :

1) With good lightening accordance and no mosaic

2) Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Project Show:

P8 Outdoor LED Wall Screen Advertising LED Display Panels 0
