Name: Lightweight Led Tv Advertising Displays , Indoor P2.5 Led Display 3840HZ
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P2.5 Indoor
Price: 2,009.43 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN

Brand Name: SC

Certification: ISO9001,FCC,IP65,3C ,ROSH9001

Model Number: P2.5 Indoor

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Square Meters / 1 Piece

Price: Negotiable

Packaging Details: Wooden box,Flight Case ,carton

Delivery Time: 10 days after received deposit

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Lightweight Led Tv Advertising Displays, Lightweight  Indoor P2.5 Led Display, Indoor P2.5 Led Display 3840HZ


Product Model:	P2.5mm	Module Resolution::	64dots(W)*64dots(H)
Warranty:	2 Years	Driver IC:	MBI 5124
Uasge:	Indoor	Place Of Origin:	Shenzhen China
Module Size:	160*160mm	Pixel Configurature:	1R1G1B
Power Supply:	Meanwell	Pixel Density:	160000/m2
Viewing Angle:	140°	Cabinet Size:	480*480
Display Resolution:	64X64=4096

Product Model:	P2.5mm
Module Resolution::	64dots(W)*64dots(H)
Warranty:	2 Years
Driver IC:	MBI 5124
Uasge:	Indoor
Place Of Origin:	Shenzhen China
Module Size:	160*160mm
Pixel Configurature:	1R1G1B
Power Supply:	Meanwell
Pixel Density:	160000/m2
Viewing Angle:	140°
Cabinet Size:	480*480
Display Resolution:	64X64=4096

Lightweight Led Tv Advertising Displays , Indoor P2.5 Led Display 3840HZ

P2.5mm SMD Super slim indoor stage LED display HD LED Display Chian Factory

Product Quick Deatils

A, Pixel Pitch:2.5mm

B, Use Nationstar SMD2121 Lamp

C, MBI:5153IC

D, Rehresh Rate:3840HZ

Feature:

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2. Nice appearance and simple structures.

3. Jointed correctly, being installed & dismounted by one person without tool.

4. Humanized operating interface with breakdown indicator lights, easy to maintain.

5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

Aplication:

Supermarkets, home, office, school, warehouse, shopping malls , hospitals ,production line , metro stations etc

Descriprion

Wholesale Retailer Indoor Rental P2 .5mm Led Display Screen, High Quality Wholesale Retailer Indoor Rental P2.5mm Led Display Screens

Parameter

※Specifications of LED modules
Technical parameters		UNIT	Parameters values
Pixel pitch		MM	2.5
Panel size		MM	L160H160T13
Physical density		/M²	160000
Pixel configuration		R/G/B	1,1,1
Driving method			1/32 Constant current 1/32scan
LED Encapsulation		SMD	2121
Display resolution		DOTS	64X64=4096
Module weight		KG	0.19
Module port			HUB-HD01
Module working voltage		VDC	5
Module consumption		W	35
※Specifications of cabinet

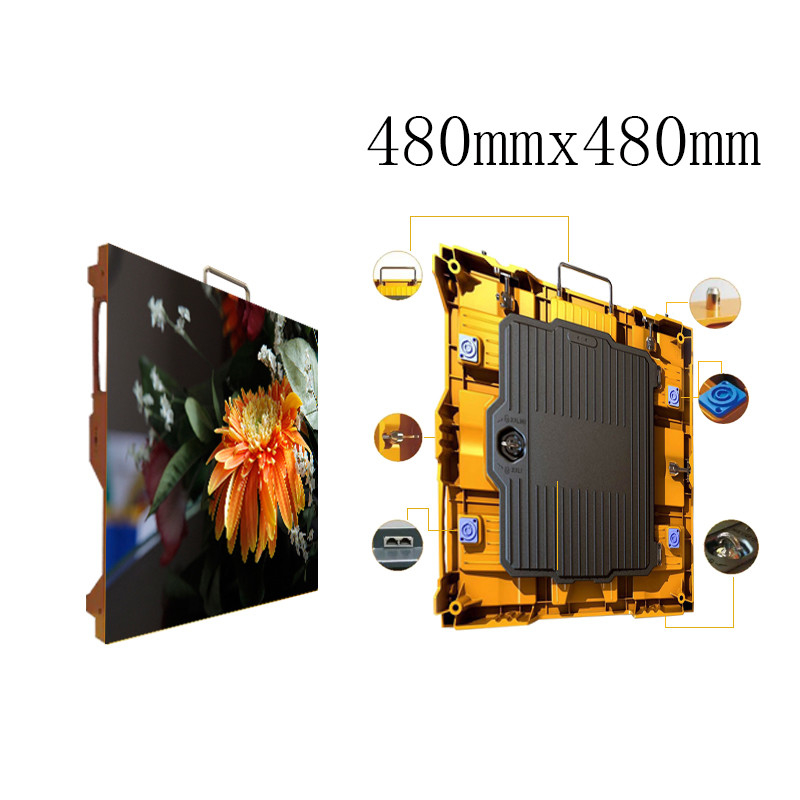

Cabinet size	mm		480*480
Cabinet weight	kg		5
Cabinet resolution	dots		192*192
Viewing angle	Deg.		140°
Option distance	M		2-30
Driving device			2016/5020
Every square meter module	PCS		39.06
Maximum power	W/ M²		1400
Frame Frequency	HZ/S		≥60
Refresh frequency	HZ/S		≥320
Equilibrium brightness	CD/ M²		≥1500
Working environment temperature	⁰C		-10~60
Working environment humidity	RH		10%～70%
Display working voltage	VAC		AC46～54HZ,220V±15%/110V±15%
Color temperature			8500K-11500K
Gray scale/color			≥16.7M color
Input signal			RF S-Video RGB etc
Control system			PCTV nonlinearity card, DVI display card,Linsn control system
Mean free error time	HOURS		＞5000
Life	HOURS		100000
Lamp failure frequency			＜0.0001
Antijam			IEC801
Safety			GB4793
Resist the electricity			1500V last 1min No breakdown
Steel box weight	KG/ M²		40(standard steel box)
Earth leakage current	mA
IP rating			The back IP40,The front IP50
Steel box size	mm		L640Xh640x80
