Wedding Led Video Wall Rental , Indoor Led Video Walls Stable Performance

Name: Wedding Led Video Wall Rental , Indoor Led Video Walls Stable Performance
Brand: SHENZHEN SOL COLUR DISPLAY CO.,LTD
SKU: P8 Outdoor
Price: 506.30 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN

Brand Name: SC

Certification: CE.3C,FCC,ROSH,ISO9001

Model Number: P8 Outdoor

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Square Meters

Price: Negotiable

Packaging Details: Wooden box,Flight Case

Delivery Time: 10 days after received deposit

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000 Square Meter/Square Meters per Month

Get Best Price

Product Details

Product Description

Highlight:

Color:	Full Color	Brightness:	7000
Warranty:	2 Years	Certificate:	CE,3C,FCC,ROSH
Uasge:	Outdoor	Place Of Origin:	Shenzhen China

Color:	Full Color
Brightness:	7000
Warranty:	2 Years
Certificate:	CE,3C,FCC,ROSH
Uasge:	Outdoor
Place Of Origin:	Shenzhen China

Wedding Led Video Wall Rental , Indoor Led Video Walls Stable Performance

P8 Outdoor LED Video Wall 7000Brightness P8 Outdoor Waterproof Full Color Double Sided LED Display

Product Features:

1, High protection grade of front IP65/rear IP54, enables it to be used in any outdoor harsh environment.

2, High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.

3, High brightness ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.

4, Super wide viewing angle and have best view in different position, give you visual enjoyment.

5, SMD2727 technology could guarantee higher flatness and better performance.

6, Aviation plug and quick lock is used, bringing easier cables connection and quicker assembly of cabinets to save time.

7, Low power consumption and fast heat dissipation with dual channel heat dissipation

8, Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans’ speed monitoring, three-way voltage monitoring and temperature monitoring etc.

9, Widely used in outdoor advertising, toll gate, supermarket, shopping mall, sport game etc.

Parameter

Unit Module	Item	Parameter
	Model Number	SF-SS8-5-A
	odule size	320mm*160mm
	Pixel pitch	8mm
	Pixels Density	15625 Pixels/m2
	Pixel configuration	1R1G1B
	LED Package mode	Nationstar SMD3535
	Pixel resolution	40dots(W)*20dots(H)
	Max Power	30W
	Module thickness	22mm
	Module Weight	0.37kg
	Drive type	Constant drive
	Scan mode	1/5
	Port type	HUB75-A
	Brightness of white balance	≥7000～7500cd/m2

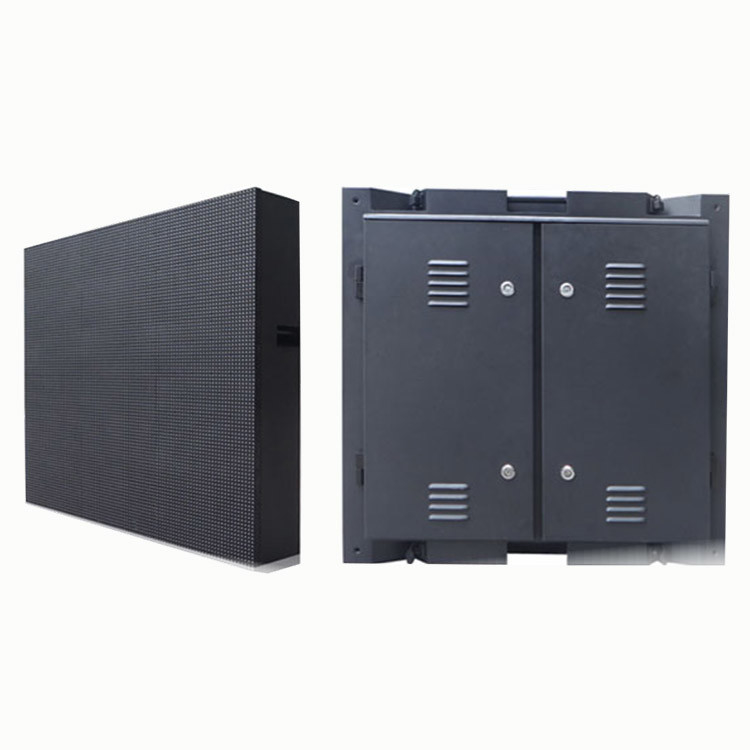

LED Cabinet	Dimension	960mm960mm100 mm
	Monomer Module Number	24pcs
	Power supply	5V/40A*4 pcs
	Thermal discharge	fan 2pcs
	Pixel per cabinet	120mm*120mm
	Best viewing distance	8M～15M
	Best viewing angle	120°(W) 110°(H)
	Temperature	storage:-35℃～+85℃ working:-20℃～+50℃
	Relative humidity	10%-95%
	Thickness	122mm
Power	Working voltage	AC220V±10%
	Average Power consumption	330W/㎡
	Max.Power consumption	≤1100W/㎡
	Current	≤20mA(single LED)
Control system	CPU	Pentium4 or above P4
	Operation system	WIN98/2000/NT/XP/WIN7
	Control method	Synchronization
Main technical parameter	Driving device	Constant drive IC
	Refresh frequency	≥1200HZ
	Grey scale/colors	4096,16.7M Color 4096gray level/16.7M colors
	MTBF	≥9000hours
	Power switch	Automatic switch
	Display Mode	≥800600/1024768

Project Case
