Highlight:
                                                                                                                                                                                                                                                Adjustable Brightness Outdoor Fixed LED Display, Weather proof Outdoor Fixed LED Display, Weather proof Outdoor Advertising Led Display


Color:	Full Color	Brightness:	6500
Warranty:	2 Years	Certificate:	CE
Uasge:	Outdoor	Place Of Origin:	Shenzhen China

Color:	Full Color
Brightness:	6500
Warranty:	2 Years
Certificate:	CE
Uasge:	Outdoor
Place Of Origin:	Shenzhen China

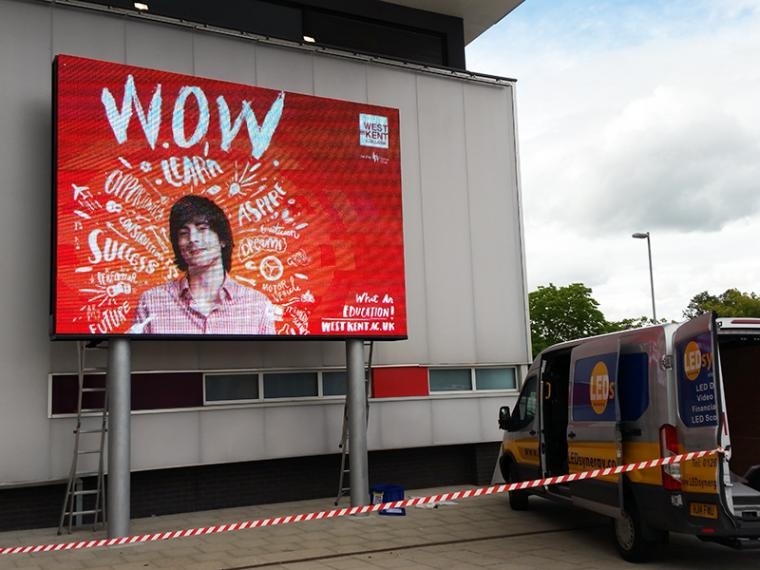

Adjustable Brightness Outdoor Fixed LED Display For Media Advertising Weather Proof

Adjustable Brightness Outdoor SMD LED Display Low Power Consumption For Media Advertising

Specifications

1. p10 outdoor full color led display

2. High refresh rate:>600hz

3. High brightness:>8500cd/2

4. 2 years warranty

Features:

1) With good lightening accordance and no mosaic

2) Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing eff

Parameter

No	Item	Parameter
1	Pixel Pitch	10mm
2	Pixel Configuration	1R1G1B / R:G:B=3:6:1
3	LED Lamp	Full color
4	Density	10000dot/m²
5	Module Size	320*160mm
6	Module Pixel	32*16=512dot
7	Module Thickness	17mm
8	Module Weight	395g
9	Module Power	≤63W
10	Drive Valtage	DC5V
11	Module Electric Current	11-12.5A
12	PortType	HUB-75D/B

No	Item	Parameter
1	Standard Caninet Size	960mm960mm130mm
2	Cabinet Weight	9.85KGS
3	Brightness/Adjustment	≥7800cd/m², Level 16- Automatic / Level 100-Manual operation
4	View Angle	≥120°(Vertical),≥120°(Horizontal)
5	Best View Distance	10-100m
6	Grey Scale	Within 65536 Step
7	Frame Frequency	≥60Hz
8	Refresh Rate	≥1560Hz
9	Signal Input Source	Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI
10	Scan Mode	1/2 1/4
11	Drive IC	5020
12	Module Qty / M²	19.5
13	Display Color Qty	16777216
14	Continuous Working Time	>24(Hrs)
15	Screen Lifespan	>100,000(Hrs)
16	MTBF	>5000(Hrs)
17	Max. power consumption	1250W/㎡
18	Ave. power consumption	420W/㎡
19	Out of control pixel rate	≥3/10,000(discrete distribution)
20	Control Distance	100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)
21	Flatness	Screen Surface≤0.5mm,Pixel Pitch≤0.3mm
22	Operation Temperature	-10℃～+50℃
23	Working Humidity	10%～98%RH
24	Storage Temperature	-40℃～+85℃
25	Software Connection	Standard Computer Connection,Compatiable With Windows,Unix,Novell
26	protection system	Overtemperature/overload/power/image compensation/nonlinear correction
27	Working Valtage	200~240 V
28	Dielectric Strength	50HZ/1500V(AC RMS)/1min
29	Temperature Rise	Metal≤40K,Insulation≤65K , After Heat Balance
30	IP Grade	IP65
31	Computer display mode	1024*768
33	Media Player	LED Pressional Media Player
