Our Product Introduction

for more products please visit us on sol-colur.com

Basic Information

Place of Origin:

China

Brand Name:

Sol-colur

Certification:

CE/FCC/ROHS/ISO

Model Number:

P4.81

Minimum Order Quantity:

1sqm

Price:

Negotiated

Packaging Details:

Flight case, Wooden case

Delivery Time:

10 working days after receiving deposit

Payment Terms:

L/C, T/T

Supply Ability:

5000sqm/month

P4.81 Outdoor Rental Led Display 3840Hz-7680Hz

Product Specification

LEDs Brand:

Nationstar/Kinglight/Ruisheng/Mulinsen/specified

Refresh Rate:

3840Hz-7680Hz

Brightness:

4000-5000 Cd/㎡

Scan Mode:

1/13 Scan

Maintenance Methods:

Rear

Module Size:

250*250mm

Cabinet Size:

500*1000mm

Cabinet Material:

Die Casting Aluminum

Cabinet Weight:

12.5 Kg

Protection Level:

IP65

Max. Power Consumption:

≤700W/㎡

Ave. Power Consumption:

≤200W/㎡

Gray Level:

14 Bits-16 Bits

Installation:

Hanging/ Ground

Highlight:

7680Hz outdoor rental led screen

Outdoor Rental Led Display 7680Hz

High Brightness P4.81 Led Display

Our Product Introduction

for more products please visit us on sol-colur.com

Product Description

Outdoor P4.81 LED Screen 3840Hz-7680Hz Die Casting Aluminum Cabinet 500x1000mm

Product features:

1. The humanized arc lock design can be compatible with straight and curved screens to meet different customers' needs for flexible screen splicing.

2. Multiple protection, reduced maintenance, light and thin die-casting aluminum cabinet, strong toughness, high precision, not easy to deform.

3. The average power consumption is only up to 200W, which is energy-saving and environmentally friendly.

4. 120-degree ultra-wide viewing angle.

5. RGB deep grayscale processing, rich and delicate colors, clear and natural picture quality.

6. Easy and quick to disassemble and install.

Product technical specifications:

Item	Parameter	Specification
Module parameters	Pitch	4.81mm
	LEDs	SMD1921
	Lead wire	Copper
	Module resolution	52*52 dots
	Module size ± tolerances	249.90±0.1(V)* 249.90±0.1(H)*17.9±0.5(D)
	Module weight ± tolerances	≤0.60 KGS
	Pixel density	65536 dots/㎡
Cabinet parameters	Cabinet size ± tolerances	499.9(±0.1)(H)999.9(±0.1)(V) 76(±0.2)(D)
	Cabinet flatness	≤1.0mm
	Cabinet material	Die casting aluminum
	Cabinet weight ± tolerance	≤6.9 KGS
Cabinet parameters of screen	Module quantity for 1 cabinet	2*4=8 PCS
	Cabinet resolution	104*208 dots
	Cabinet + Module size ± tolerance	499.9(±0.1)(H)999.9(±0.1)(V)85(±0.2)(D)
	Cabinet + Module weight ± tolerance	12.5 KGS
	Maintenance methods	Rear/Front
	Flatness	≤1.0mm
	Screen seams	≤1.0mm
Optical parameters	Pixel-by-pixel brightness correction	Support
	Pixel-by-pixel chromaticity correction	Support
	White balance brightness	4000-5000 cd/㎡
	Color temperature	3000K-15000K
	Horizontal viewing angle	≥120°
	Vertical viewing angle	≥110°
	Viewing distance(=PITCH*1)	≥4m
Electrical parameters	Max. power consumption of cabinet	≤200 W
	Ave. power consumption	≤200W/㎡
	Max. power consumption	≤700W/㎡
	Power supply requirements	220-240V AC
Processing performance	Scan	13S
	Frame rate	50-60Hz
	Refresh rate	3840Hz-7680Hz
	Drive mode	Constant current
	Grayscale	14bits - 16bits
Control system	Control method	Ethernet port
	Control the distance	Cat5e Unshielded Twisted Pai
	Signal input	HDMI,DVI
	Brightness adjust	Manual/automatic/remote control
Operational parameters	Continuous working hours	≥ 5000hrs
	Mean time between failures	≥ 5000hrs
	Discrete out-of-control points	0 before shipping
	Continuous runaway points	0
	Blind spot rate	0 before shipping
	Screen temperature rise	≤ 65℃
Usage parameters	Typical life values	50000hrs
	Lamp temperature	≤60°
	Operating temperature	-10°~50°
	Storage temperature	-20°~50°
	Operating humidity	10~65%RH no condensation
	Storage humidity	10~65%RH no condensation
Protection	Protection level	IP65
Certification	CE/FCC/ROHS/ISO	/

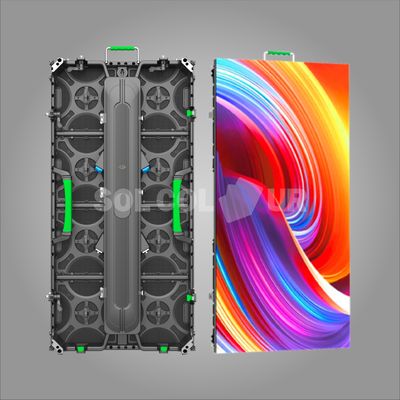

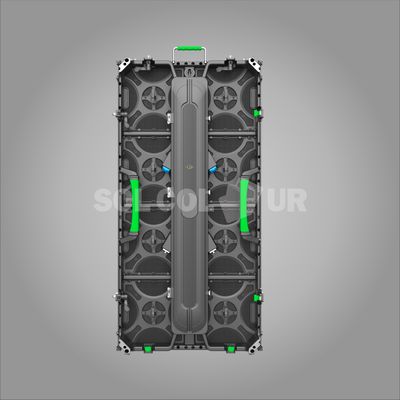

Reference pictures:
