Product Details
Place of Origin: China
Brand Name: Sol-colur
Certification: CE/FCC/ROHS/ISO
Model Number: P2.5-P10
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Carton box, Wooden case
Delivery Time: 10 working days after receiving deposit
Payment Terms: L/C, T/T
Supply Ability: 5000sqm/month
|
Module Size:
|
320x160mm
|
Cabinet Size:
|
960x960mm Or Customized
|
Cabinet Material:
|
Iron/Aluminum
|
LEDs Brand:
|
Nationstar/Kinglight/Mulinsen/Specificed
|
Refresh Rate:
|
3840Hz - 7680Hz
|
Brightness:
|
5000nits - 6000nits
|
Max. Power Consumption:
|
760W/㎡
|
Ave. Power Consumption:
|
240W/㎡
|
Gray Level:
|
14bits - 16bits
|
Viewing Distance:
|
≥5m
|
Protection Level:
|
IP65
|
Operating Voltage:
|
AC110V/220V±10%
|
|
Module Size:
|
320x160mm
|
|
Cabinet Size:
|
960x960mm Or Customized
|
|
Cabinet Material:
|
Iron/Aluminum
|
|
LEDs Brand:
|
Nationstar/Kinglight/Mulinsen/Specificed
|
|
Refresh Rate:
|
3840Hz - 7680Hz
|
|
Brightness:
|
5000nits - 6000nits
|
|
Max. Power Consumption:
|
760W/㎡
|
|
Ave. Power Consumption:
|
240W/㎡
|
|
Gray Level:
|
14bits - 16bits
|
|
Viewing Distance:
|
≥5m
|
|
Protection Level:
|
IP65
|
|
Operating Voltage:
|
AC110V/220V±10%
|
Product features:
1. Broadcast-grade color gamut, color temperature is intelligently adjustable.
2. The brightness is moderate, and there is no fatigue when watching for a long time.
3. The display unit is flexible, flat, and smooth splicing.
4. No seams, ultra-wide viewing angle, uniform brightness, and chromaticity.
5. Ultraviolet-resistant, anti-deformation module kit, the assembled screen is flat and not deformed.
6. The ink color treatment of the unique mask design presents an industry-leading ultra-high contrast.
7. Ultra-high refresh display, fast frame change speed, eliminate ghosting without tailing, low brightness, and high gray lossless technology.
8. Waterproof, dustproof, anti-corrosion, flame retardant, ultraviolet resistant, protection level up to IP65.
Product technical specifications:
| Item | Specification | ||||||||
| Model | P2.5 | P3 | P3.076 | P4 | P5 | P5.92 | P6.667 | P8 | P10 |
| Pitch | 2.5mm | 3mm | 3.076mm | 4mm | 5mm | 5.92mm | 6.667mm | 8mm | 10mm |
| LEDs | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module size | 320*160 | 192*192 | 320*160 | ||||||
| Scan | 16S | 16S | 13S | 10S | 8S | 7S | 6S | 5S | 2S |
| Resolution | 128×64 | 64X64 | 104X52 | 80X40 | 64X32 | 54X27 | 48*24 | 40X20 | 32X16 |
| Pixel density | 160000 | 111111 | 90000 | 62500 | 40000 | 28476 | 22201 | 15625 | 10000 |
| IP rate | IP65 | ||||||||
| Maintenance | Rear | Front/Rear | |||||||
| Brightness | 4500 | 4500 | 4500 | 4500～5000 | 5500 | 5500 | 5500 | 5000～5500 | 6000～6500 |
| Horizontal viewing angle | 110° | ||||||||
| Vertical viewing angle | 110° | ||||||||
| Max. power consumption | ≤900W/m² | ≤900W/m² | ≤780W/m² | ≤740W/m² | ≤760W/m² | ≤780W/m² | |||
| Ave. power consumption | ≤300W/m² | ≤300W/m² | ≤250W/m² | ≤230W/m² | ≤240W/m | ≤250W/m² | |||
| Work voltage | AC220V±10% | ||||||||
| Refresh rate | 3840Hz-7680Hz | ||||||||
| Lifespan | 100000(Hours) | ||||||||
| Operating temperature | -20℃~+65℃ | ||||||||
| Storage temperature | -35℃~+80℃ | ||||||||
| Operating humidity | 10~90%RH | ||||||||
| Storage humidity | 10~95%RH | ||||||||

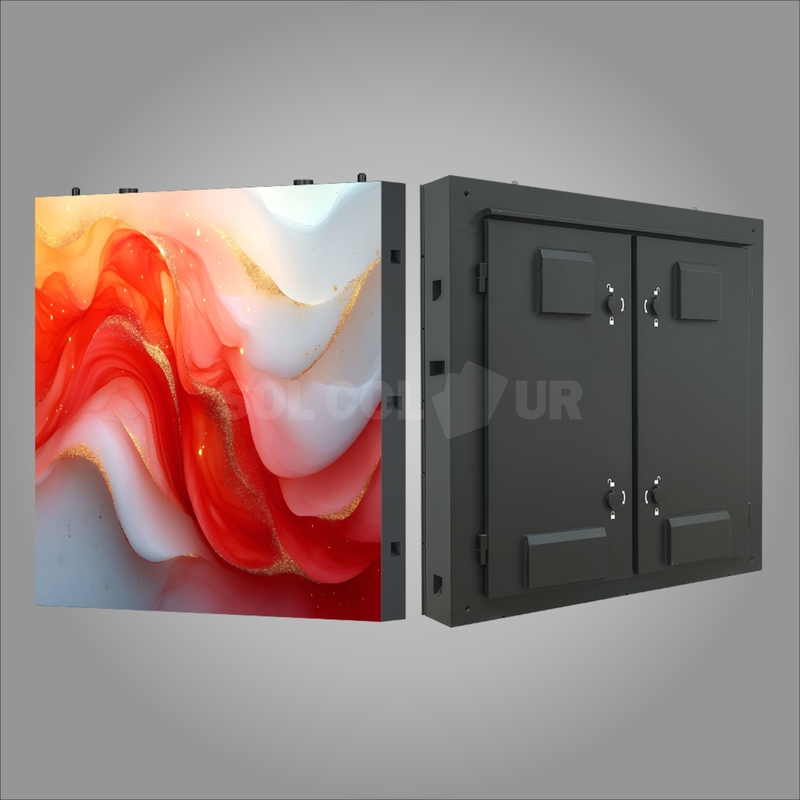

Reference pictures:
