Product Details
Place of Origin: China
Brand Name: Sol-colur
Certification: CE/FCC/ROHS/ISO
Model Number: P5.7
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiated
Packaging Details: Carton box, Wooden case
Delivery Time: 10 working days after receiving deposit
Payment Terms: L/C, T/T
Supply Ability: 5000sqm/month
|
Module Size:
|
480x320mm
|
Cabinet Size:
|
960x960mm
|
Cabinet Weight:
|
28kg/㎡
|
Cabinet Material:
|
Profile Aluminum
|
LEDs Brand:
|
Nationstar/Kinglight/Mulinsen/Specificed
|
Refresh Rate:
|
3840Hz - 7680Hz
|
Brightness:
|
≥6500nits
|
Max. Power Consumption:
|
650W/㎡
|
Ave. Power Consumption:
|
220W/㎡
|
Gray Level:
|
14bits - 16bits
|
Viewing Distance:
|
≥5m
|
Protection Level:
|
IP65
|
Operating Voltage:
|
AC110V/220V±10%
|
|
Module Size:
|
480x320mm
|
|
Cabinet Size:
|
960x960mm
|
|
Cabinet Weight:
|
28kg/㎡
|
|
Cabinet Material:
|
Profile Aluminum
|
|
LEDs Brand:
|
Nationstar/Kinglight/Mulinsen/Specificed
|
|
Refresh Rate:
|
3840Hz - 7680Hz
|
|
Brightness:
|
≥6500nits
|
|
Max. Power Consumption:
|
650W/㎡
|
|
Ave. Power Consumption:
|
220W/㎡
|
|
Gray Level:
|
14bits - 16bits
|
|
Viewing Distance:
|
≥5m
|
|
Protection Level:
|
IP65
|
|
Operating Voltage:
|
AC110V/220V±10%
|
1. The voltage divider power supply design has an average power consumption of up to 220W and more than 6500nit.
2. High brightness, environmental protection and energy-saving.
3. 140°(H/V) ultra-wide viewing angle; It can be spliced at right angles and arcs, and it is easy to achieve naked-eye 3D.
4. High brim mask design, good ink color consistency, high contrast, up to 9500:1.
5. The colors are rich and delicate; The picture is clear and natural.
6. High-strength anti-aging fabric, IP65 protection level: die-cast aluminum bottom shell, high heat dissipation ribs.
7. The design has good heat dissipation performance and prolongs the service life of the screen.
| Item | Parameter |
| Model | P5.7 |
| Pixel pitch | 5.71mm |
| LEDs | SMD2727 |
| Module size | 480x320mm |
| Module resolution | 84x56 dots |
| Cabinet size | 960x960x77mm |
| Cabinet resolution | 168x168 dots |
| Cabinet material | Profile Aluminum |
| Cabinet weight | 28kg |
| Maintenance methods | Front |
| Brightness | ≥6500 cd/㎡ |
| Refresh rate | 3840Hz-7680Hz |
| Gray level | 14bits-16bits |
| Scan mode | 1/7 scan |
| Viewing angle | 140°/140° |
| Viewing distance | ≥5m |
| Max. power consumption | 650W/㎡ |
| Ave. power consumption | 220W/㎡ |
| Input signal | DVI, VGA, HDMI, HDSDI |
| Operating temperature | -20-60℃ |
| Operating humidity | 10-90% RH |
| Operating voltage | AC 110V / 220V ±10% |

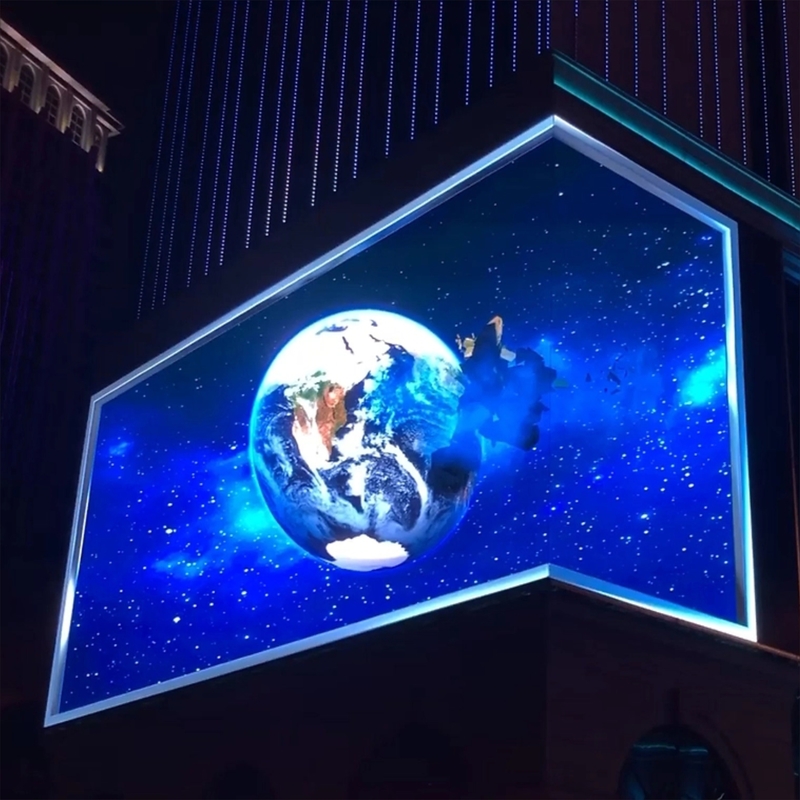

Reference pictures:
